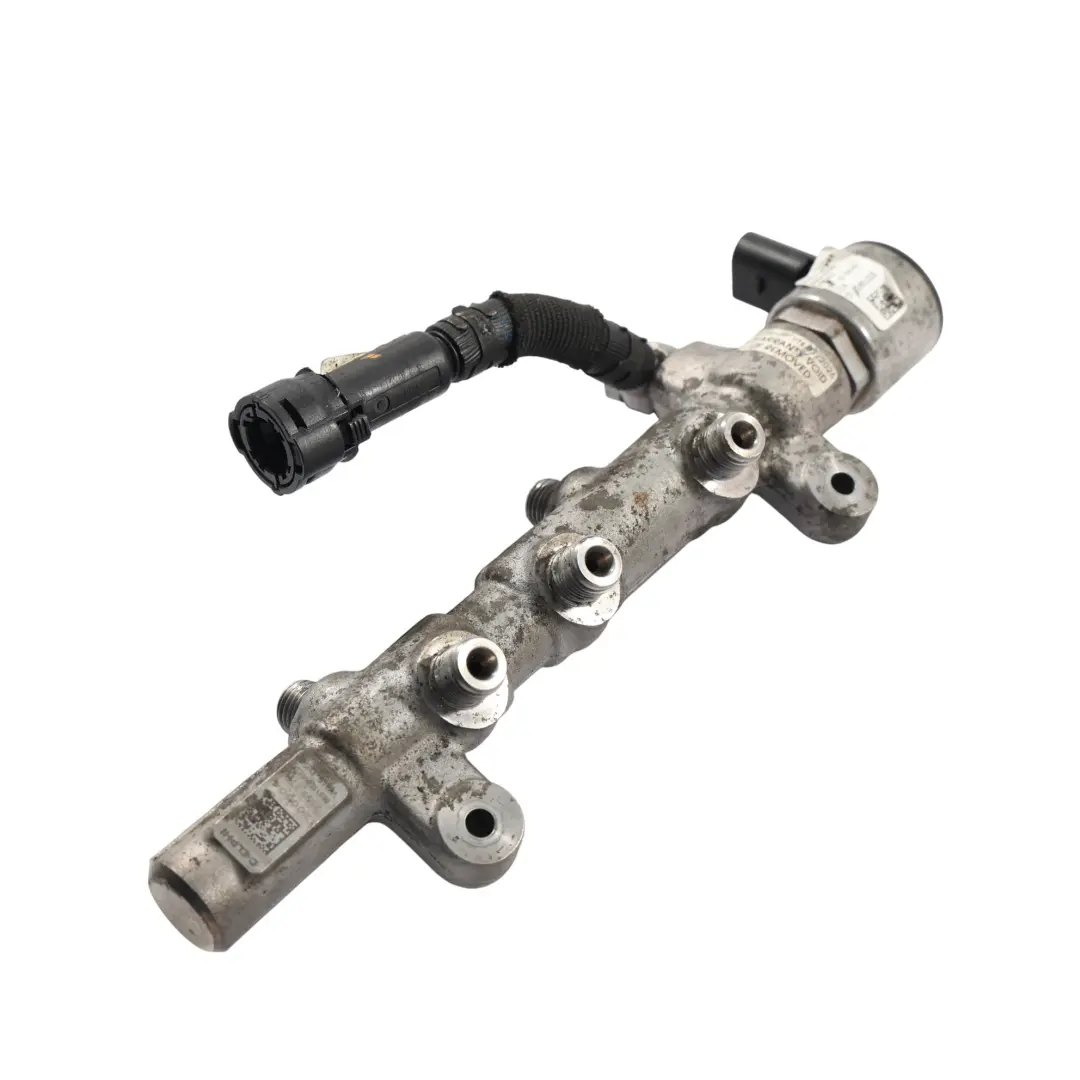

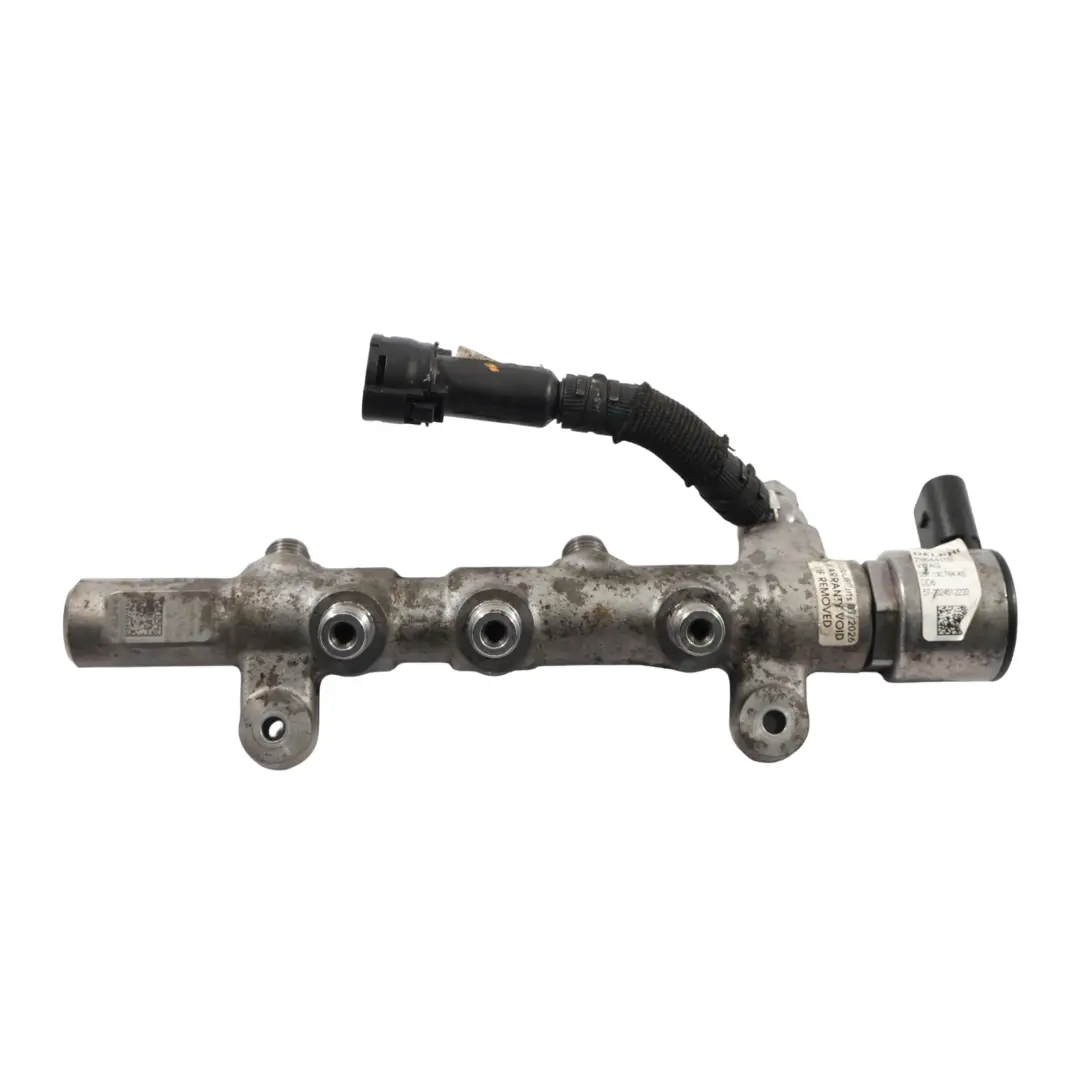

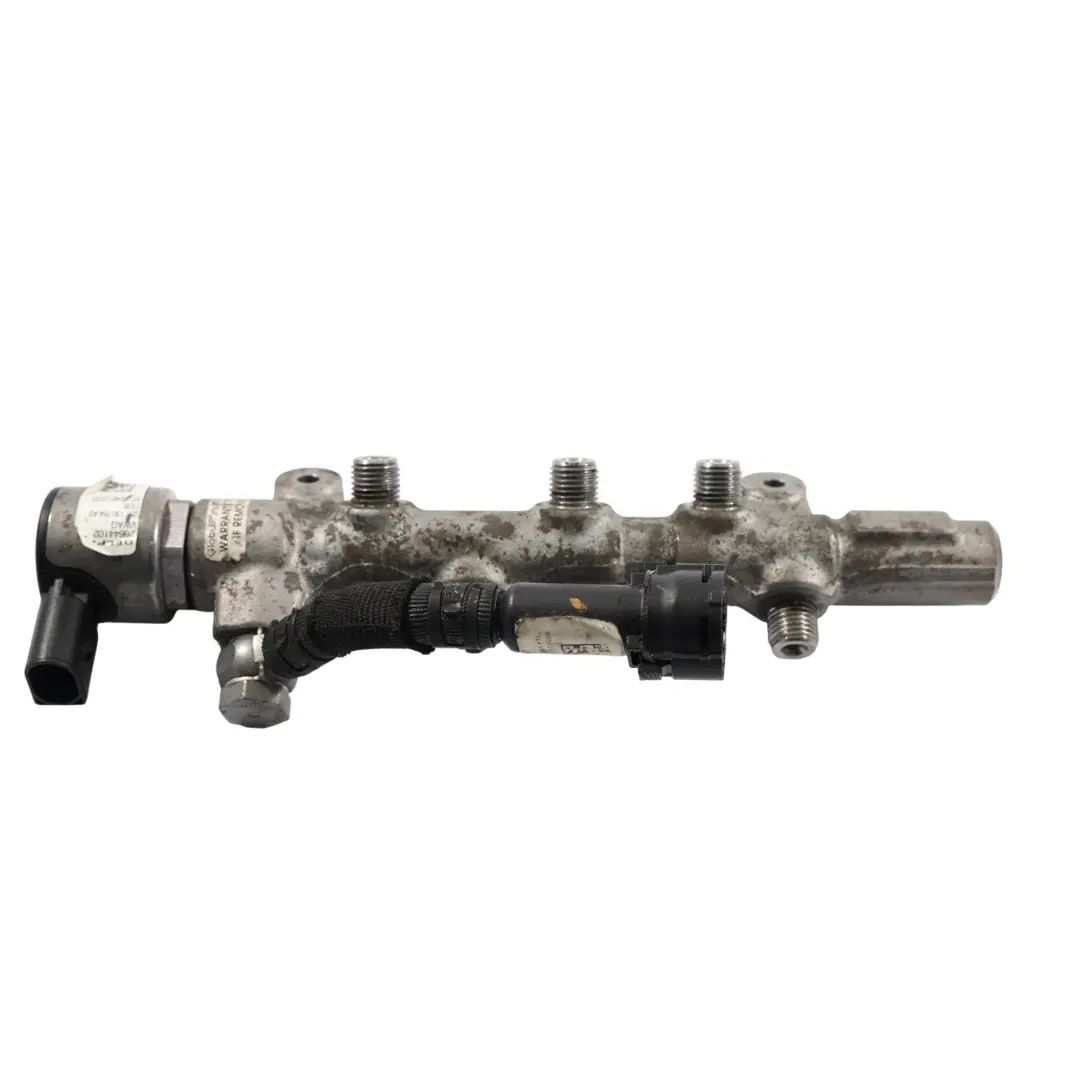

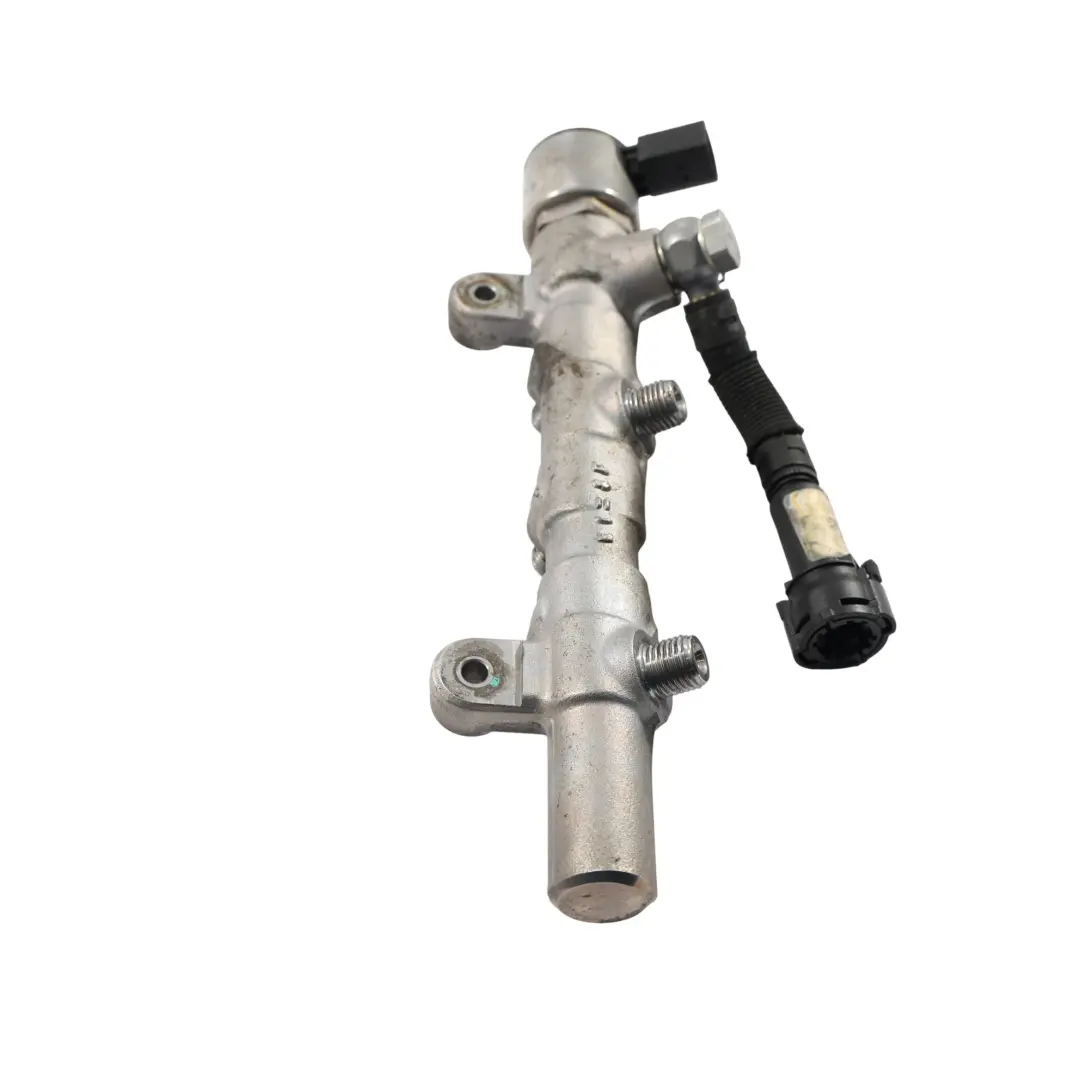

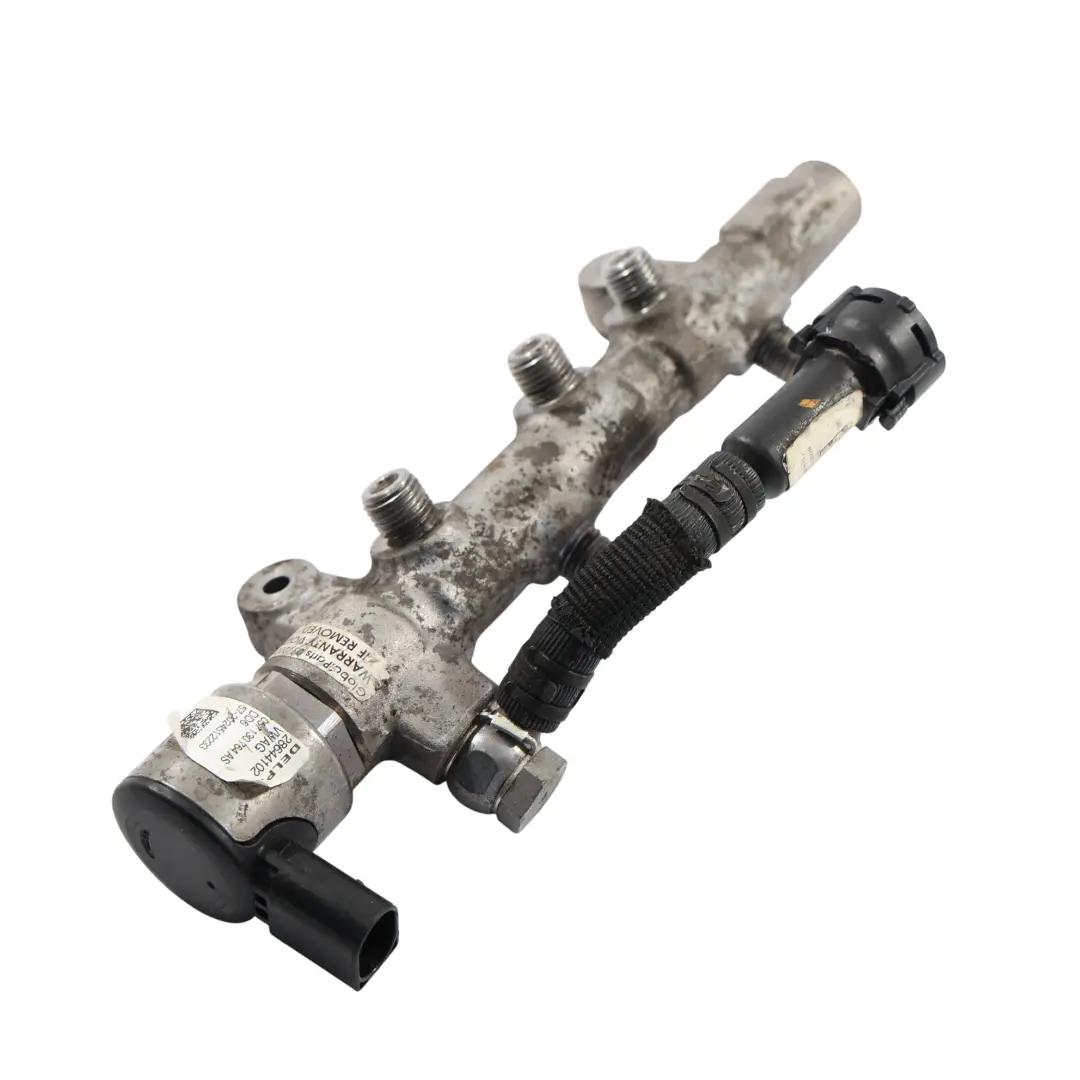

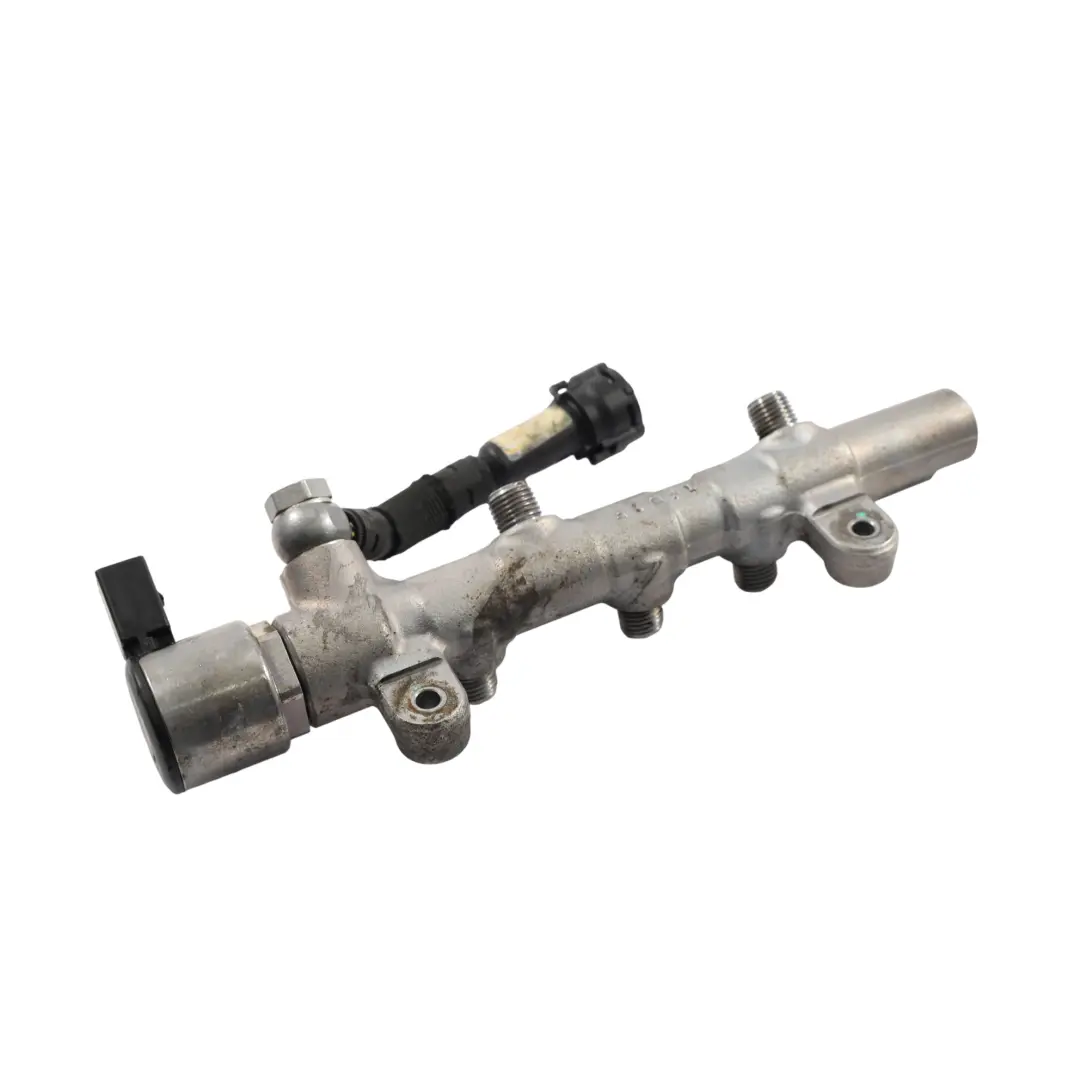

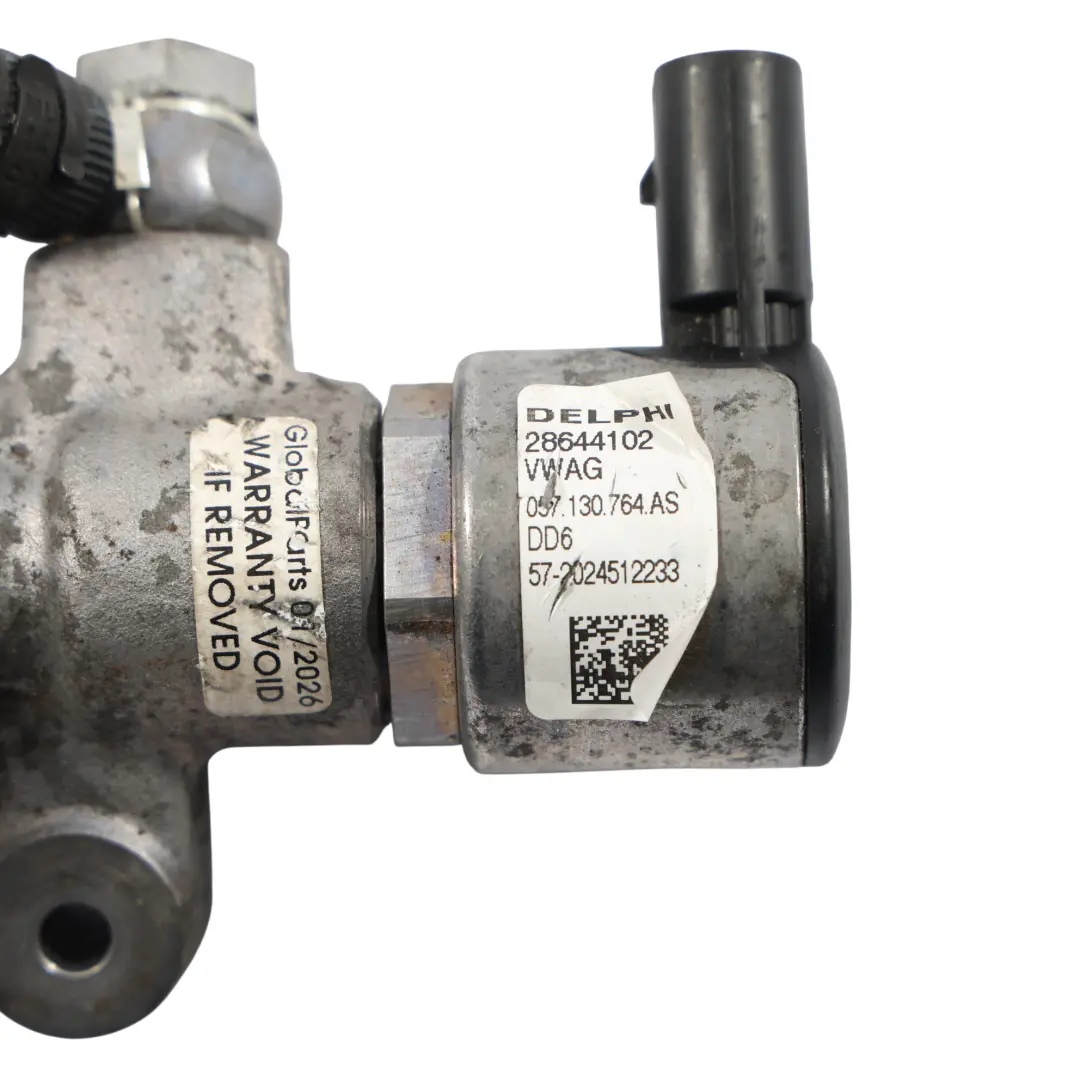

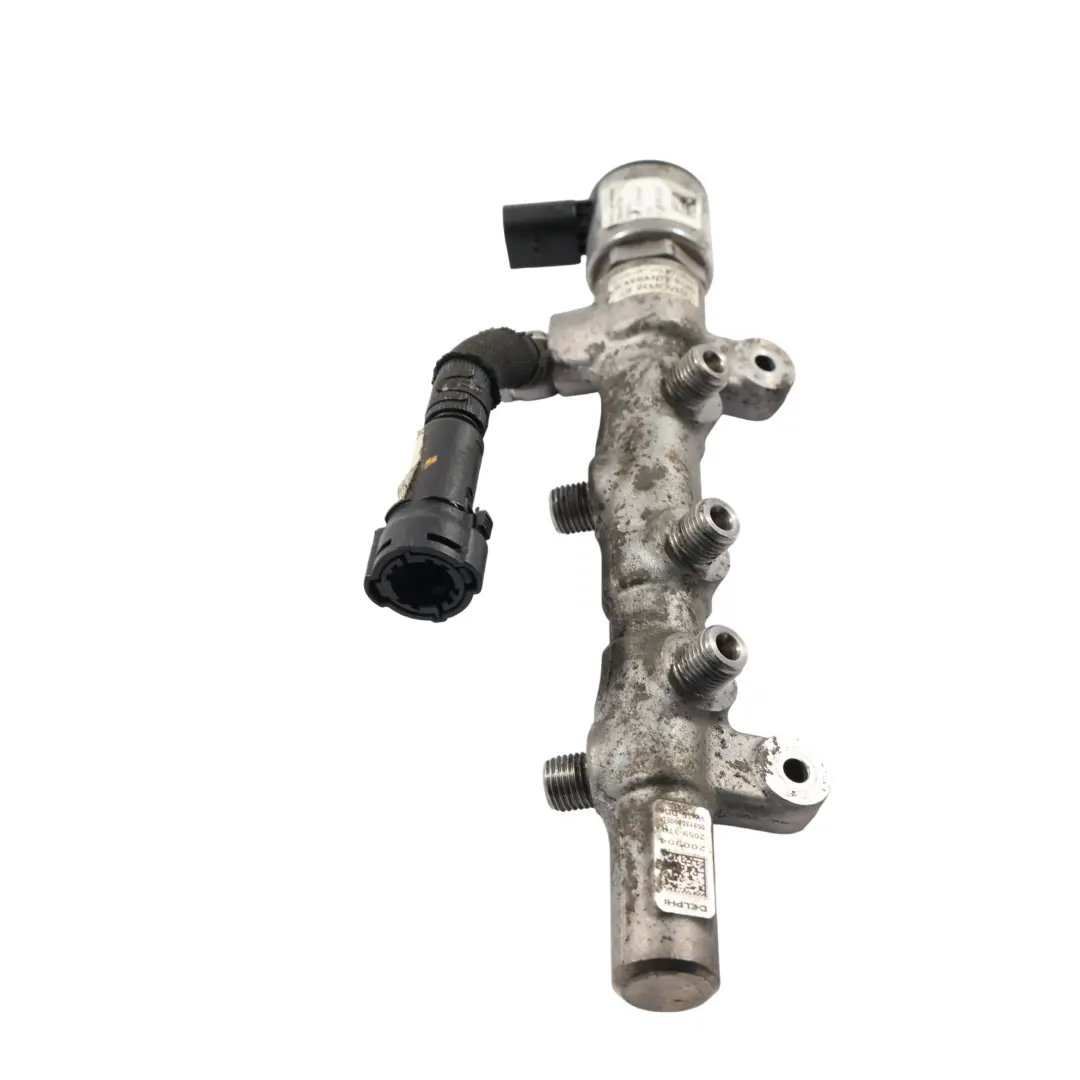

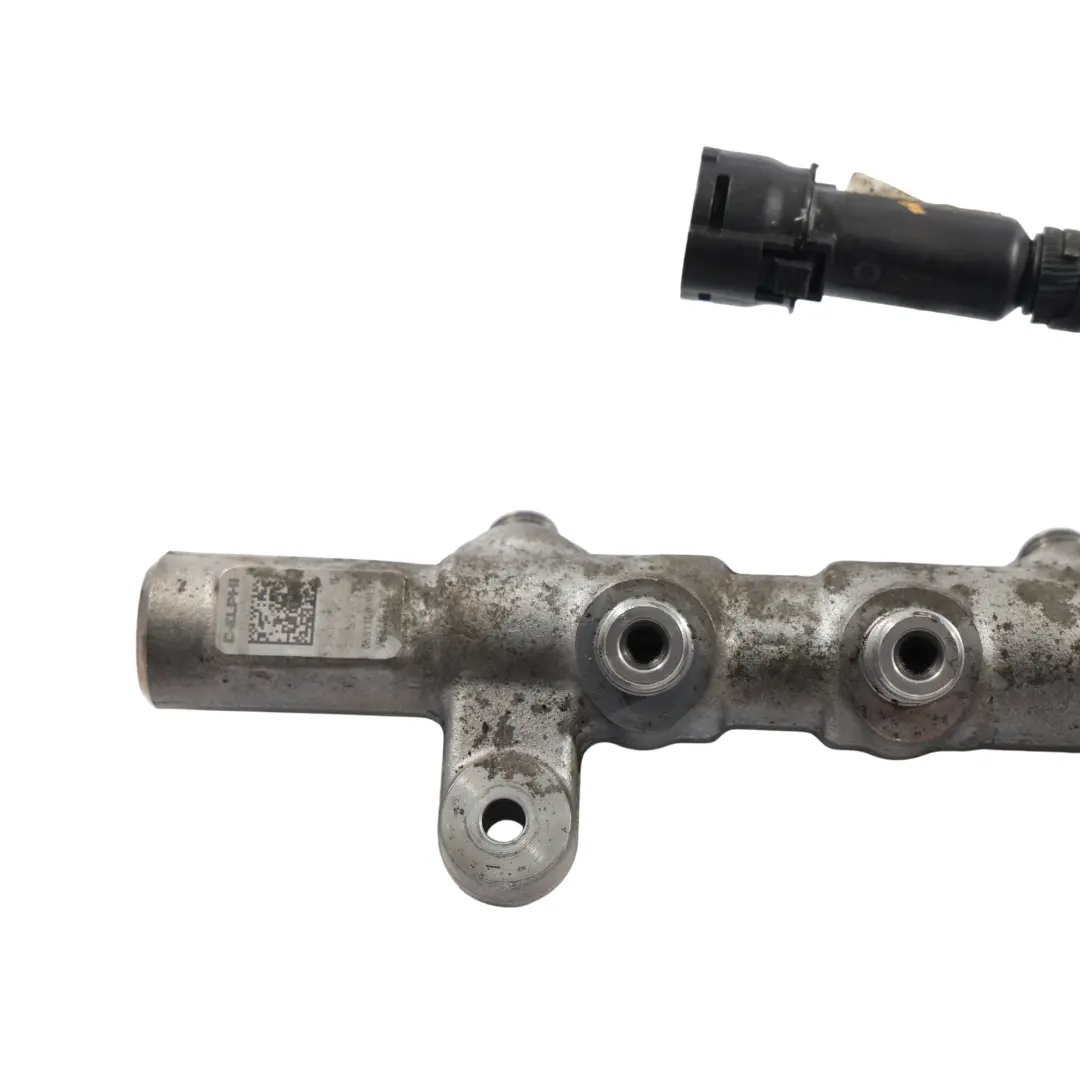

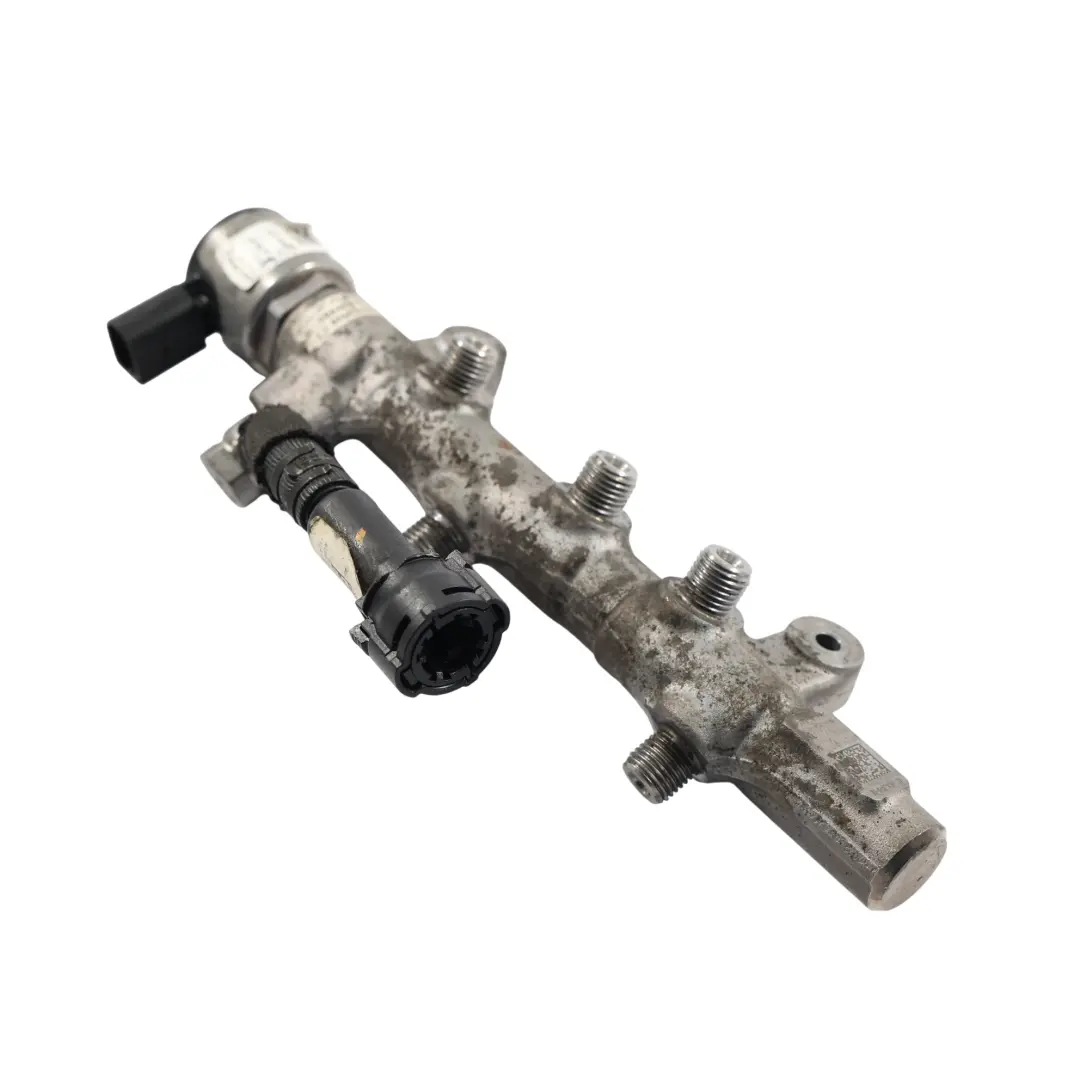

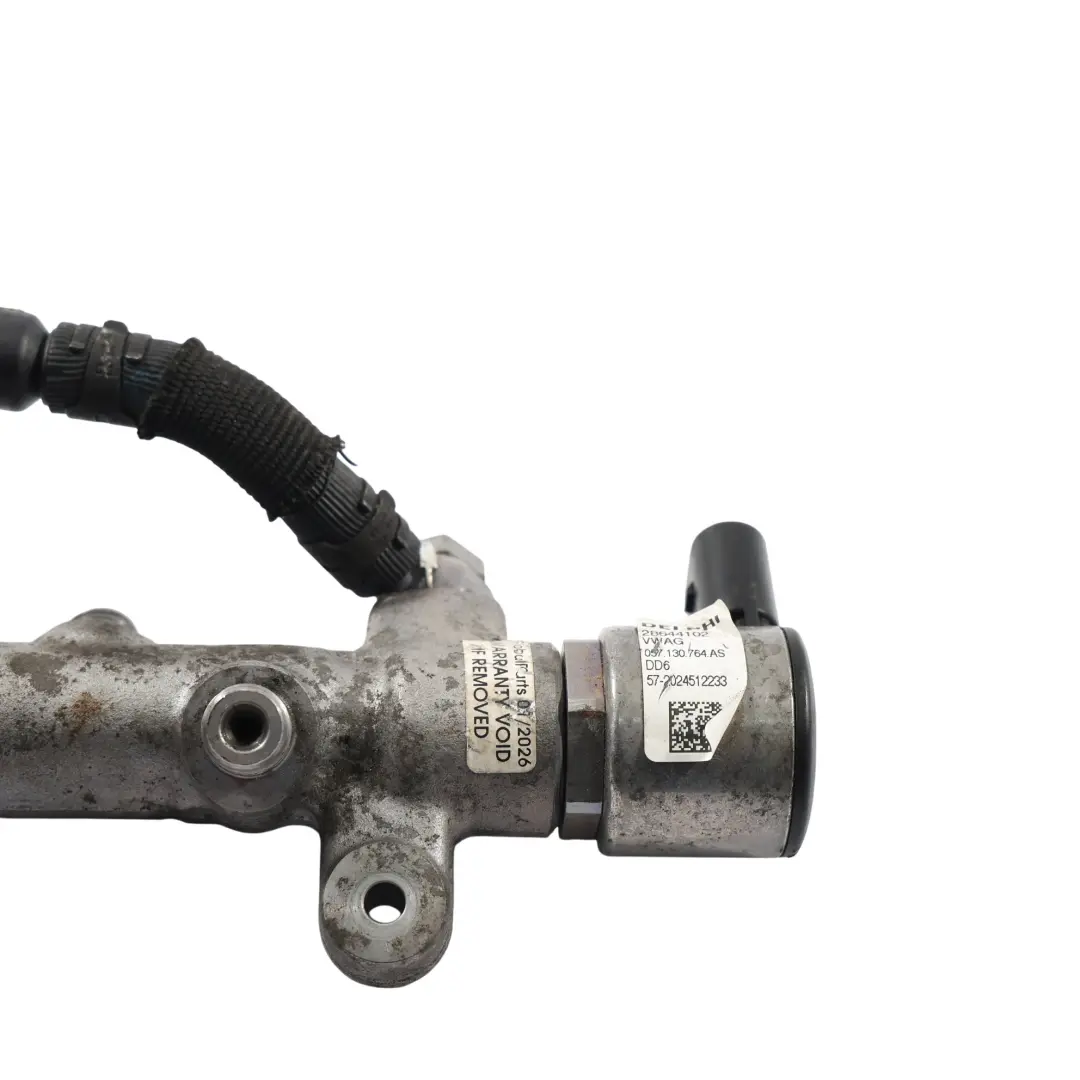

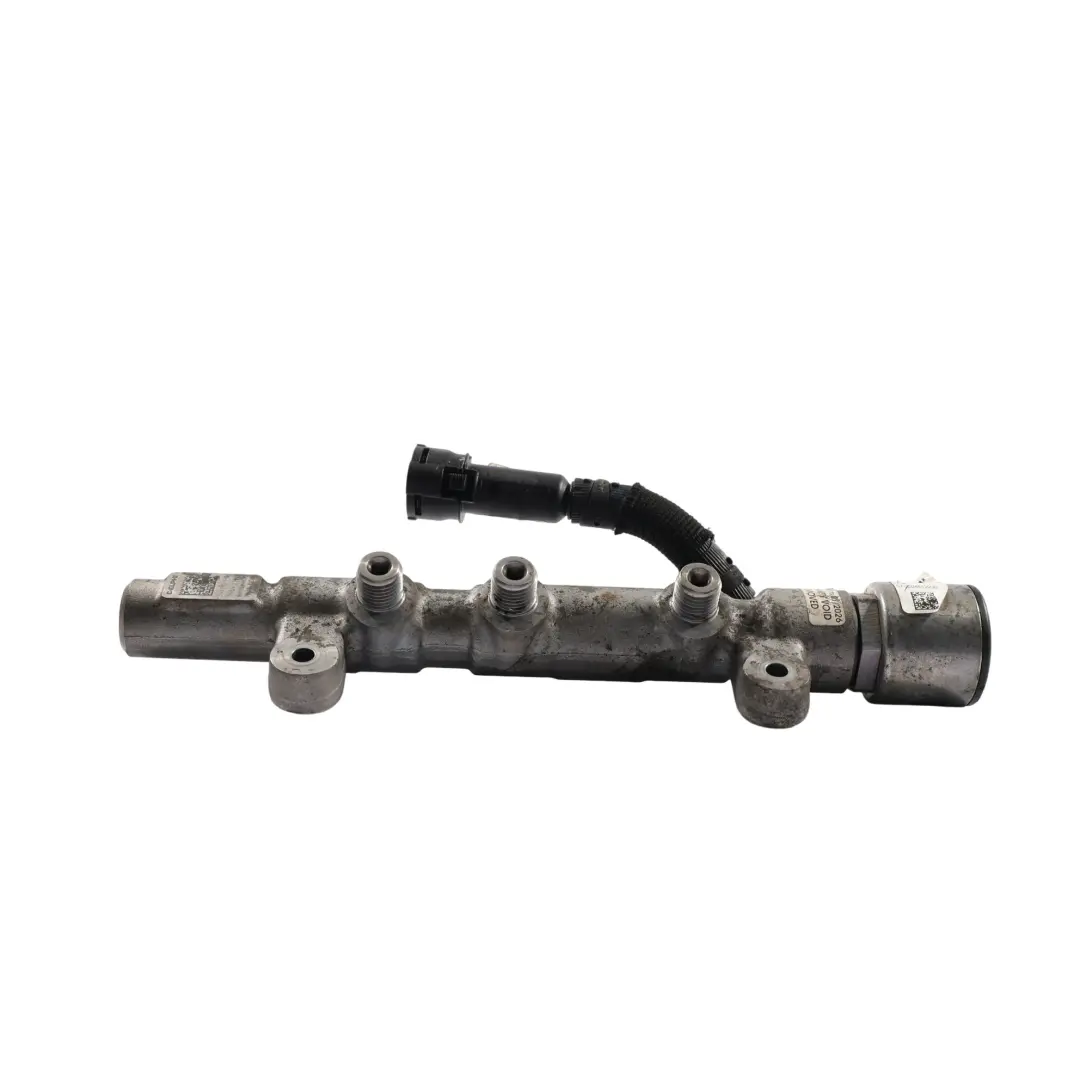

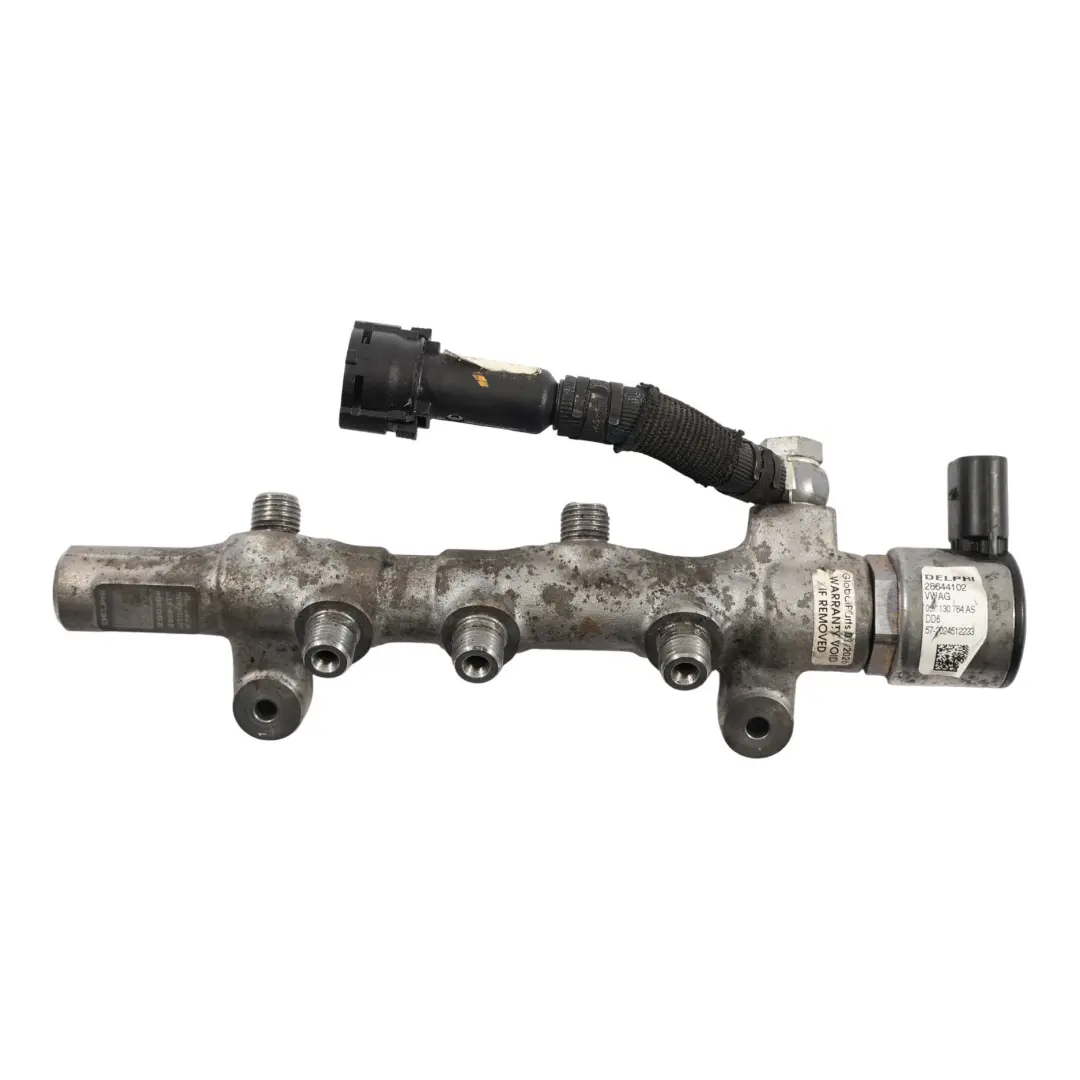

Audi A4 B9 A5 F5 Q7 4M VW Touareg Mk3 Fuel Injection Rail 3.0 TDI 059130090ED

Audi A4 B9 A5 F5 Q7 4M VW Touareg Mk3 Fuel Injection Rail 3.0 TDI is an original fuel system component designed for 3.0 TDI diesel engines in popular Audi and Volkswagen models. As a component of the Injector Nozzles group, the rail is responsible for the stable distribution of fuel to the injectors, which translates into smooth engine operation and correct combustion characteristics. This used OEM part is a solution for users looking for a technically matched component while maintaining reasonable service costs.

Specifications and technical data

• SKU: 059130090ED
• Mark: Audi
• Condition: Used
• OEM Part Number: 059130090ED
• Substitutable numbers: 059130090ED, 059 130 090 ED
• Part type: Fuel Injector
• Category: Fuel Injectors

Purpose and role in the 3.0 TDI injection system

The fuel injection rail in a 3.0 TDI engine acts as a common fuel manifold that distributes diesel fuel to individual injectors at the appropriate pressure. In vehicles such as the Audi A4 B9, A5 F5, Q7 4M, and VW Touareg Mk3, a properly functioning rail is crucial for:

• maintaining stable pressure in the common rail system,
• precise fuel dosing by the injectors,
• reducing vibrations and uneven engine operation,
• reducing smoke emissions and improving engine refinement.

Thanks to its factory design, the rail works in harmony with the engine control electronics, ensuring compliance with injection maps and parameters specified by the manufacturer.

Benefits of using an original fuel injection rail

Using an original fuel injection rail in a 3.0 TDI engine provides measurable operational benefits. The most important include:

• Full compatibility with the 3.0 TDI unit in Audi and VW models, without the need for fuel system modifications.
• Proper geometry and diameter of fuel channels, which promotes even supply to all cylinders.
• Compatibility with factory injectors and accessories, reducing the risk of engine control unit errors.
• The ability to restore proper operation of the injection system after a failure or wear of the previous rail.

For users who value predictability and repeatability of engine performance parameters, using an original element from the Injector Nozzles group is a technically sound solution.

Application in Audi and VW models

The presented fuel injection rail is designed for 3.0 TDI engines installed in modern VAG group constructions, such as the Audi A4 B9 generation, Audi A5 F5, Audi Q7 4M, and VW Touareg Mk3. The shared technical platform of these vehicles ensures that:

• the injection system is based on a similar common rail architecture,
• the layout of the connectors and rail mounts is adapted to the engine bay of these models,
• consistency with other 3.0 TDI accessories is maintained.

As a result, the installation of the rail in dedicated models is straightforward, maintaining factory mounting points and fuel line routing.

Component condition and installation aspects

The offered fuel injection rail is a used component, which allows for lower repair costs while maintaining the original design. Before installation, a standard workshop procedure is recommended, including checking the system for leaks, ensuring the cleanliness of the lines, and verifying the correct operation of the injectors and the high-pressure pump. A properly installed rail:

• ensures stable fuel pressure parameters across the entire rev range,
• reduces the risk of leaks and pressure drops in the manifold,
• allows for effective diagnostics of potential injector faults.

Diagnostics and prevention of the injection system

When replacing the fuel injection rail, it is worth paying attention to the general condition of the fuel system, in particular the injectors, the high-pressure pump, and the fuel filter. For drivers who want to better understand the symptoms of injector wear and the consequences of neglecting them, the following article will be helpful: Diesel injector faults – how to recognize them and the risks of neglecting them.

If you are planning a comprehensive repair or upgrade of the injection system area in your Audi and need other elements from the same group, such as rails, lines, or complete injection assemblies, check the available parts in the Audi Injector Nozzles category.
