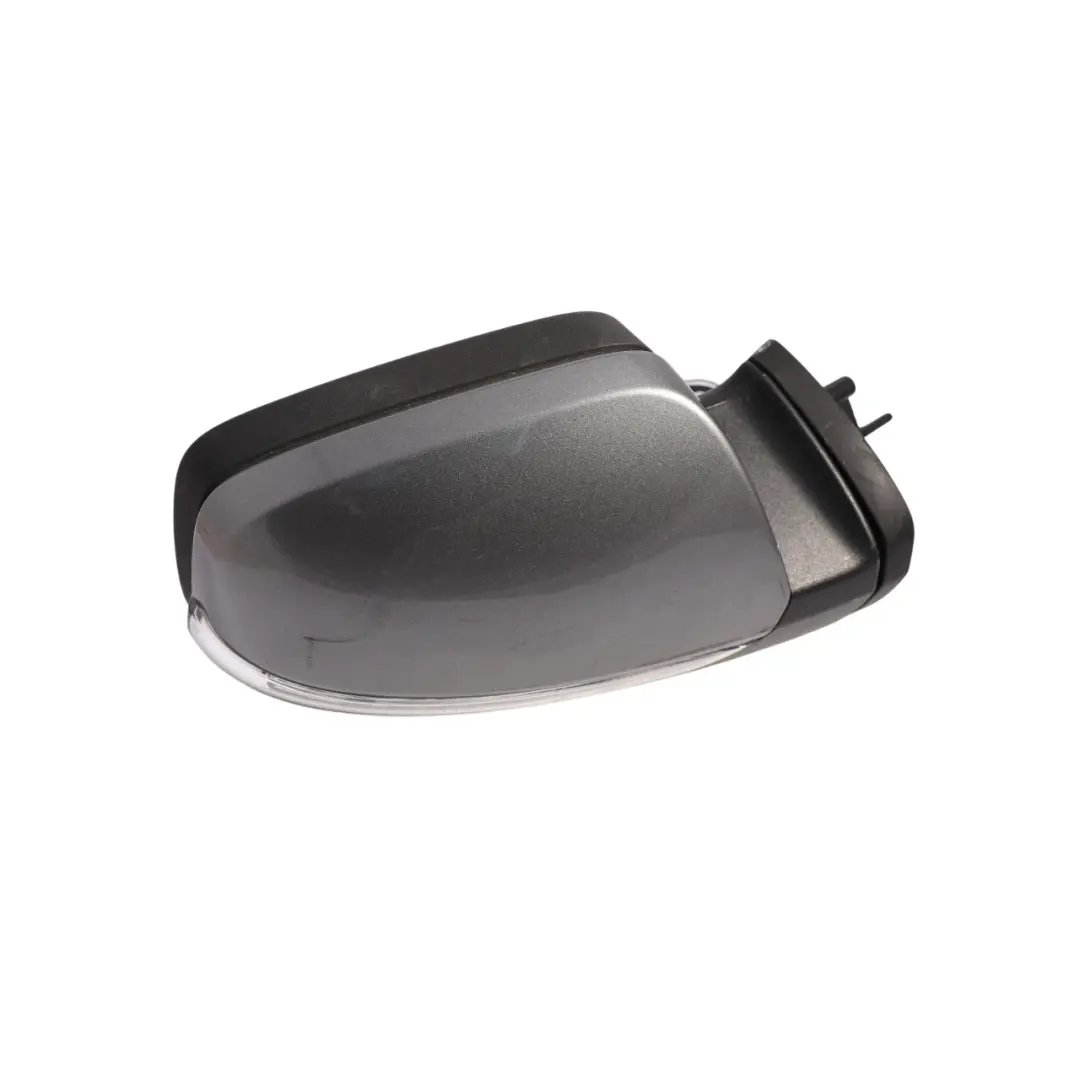

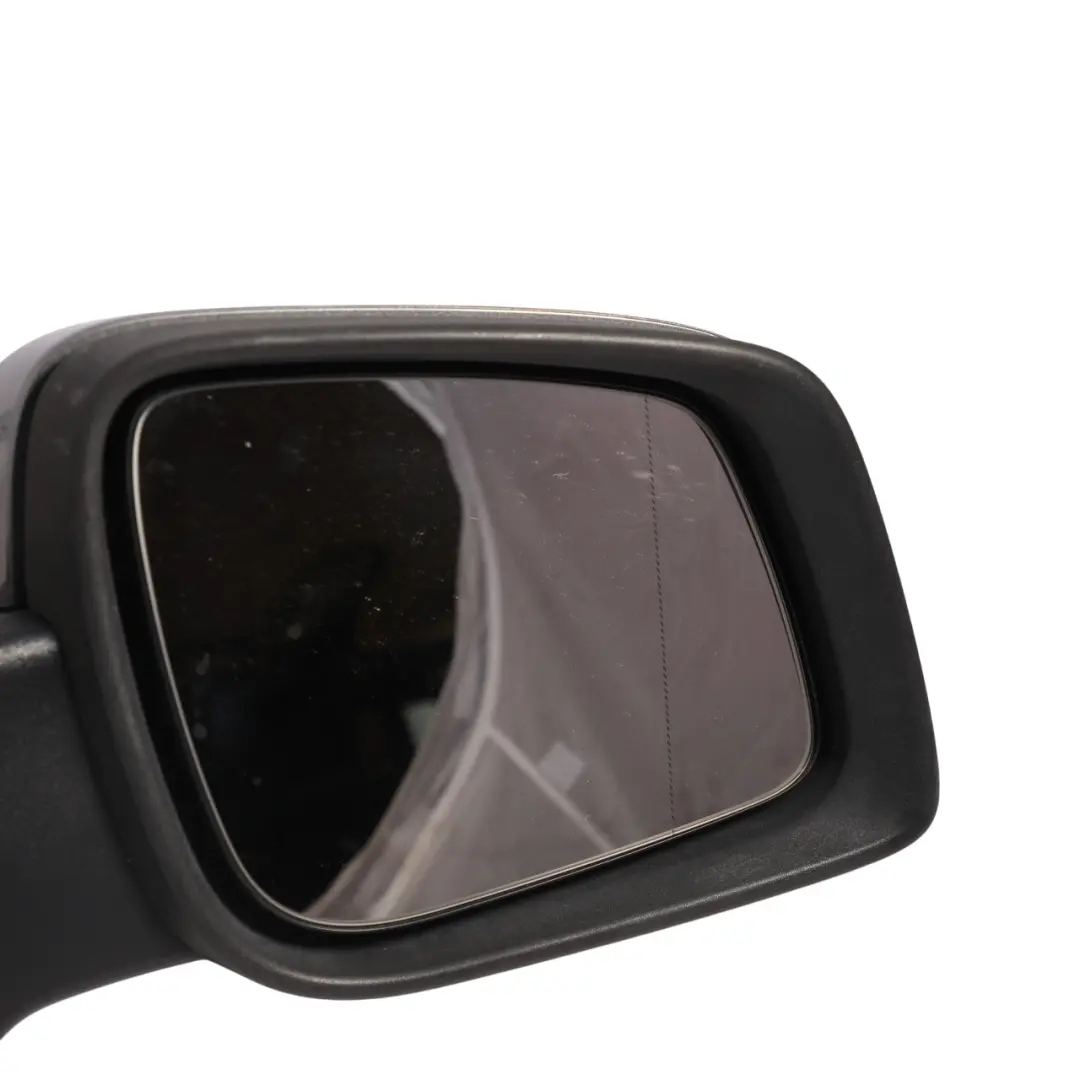

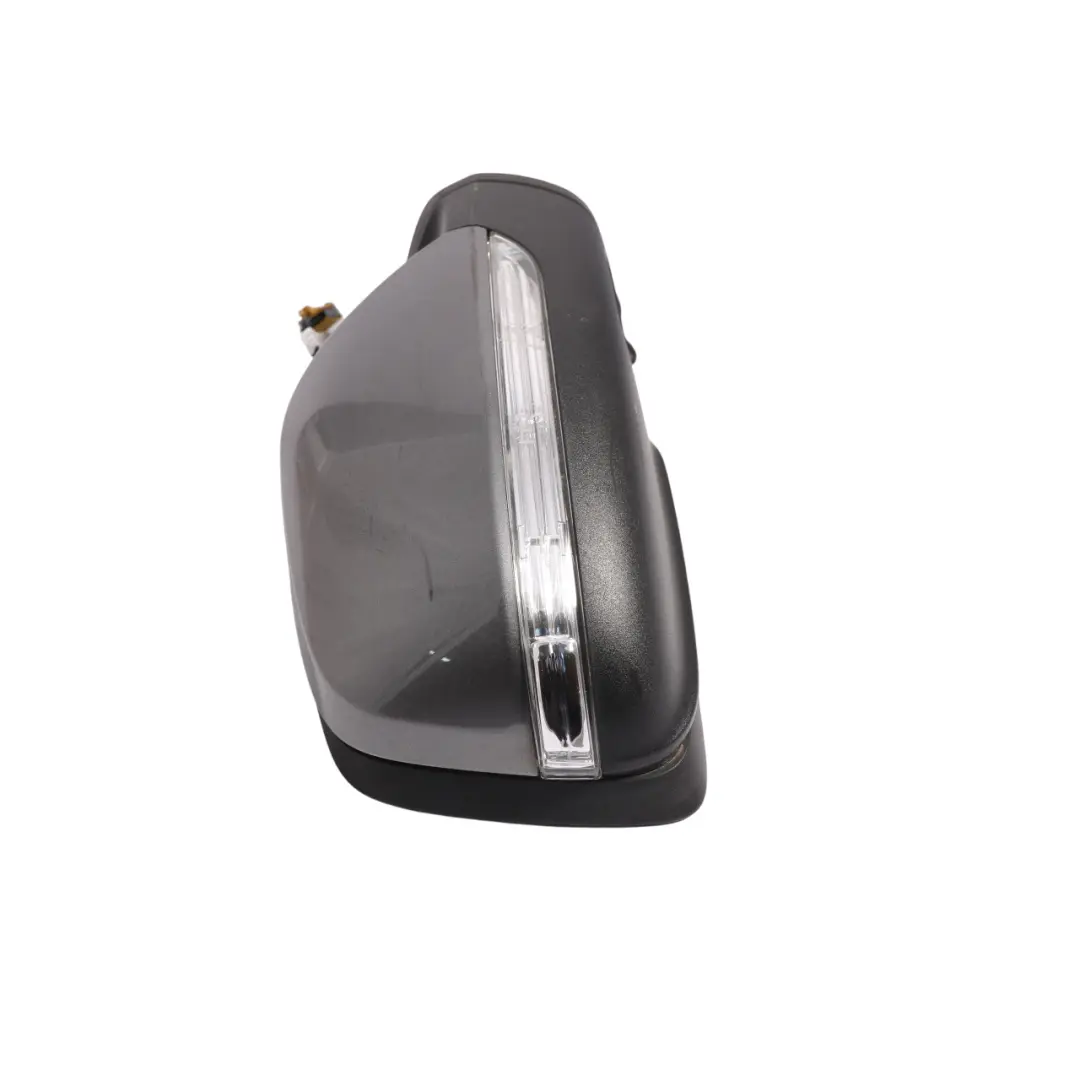

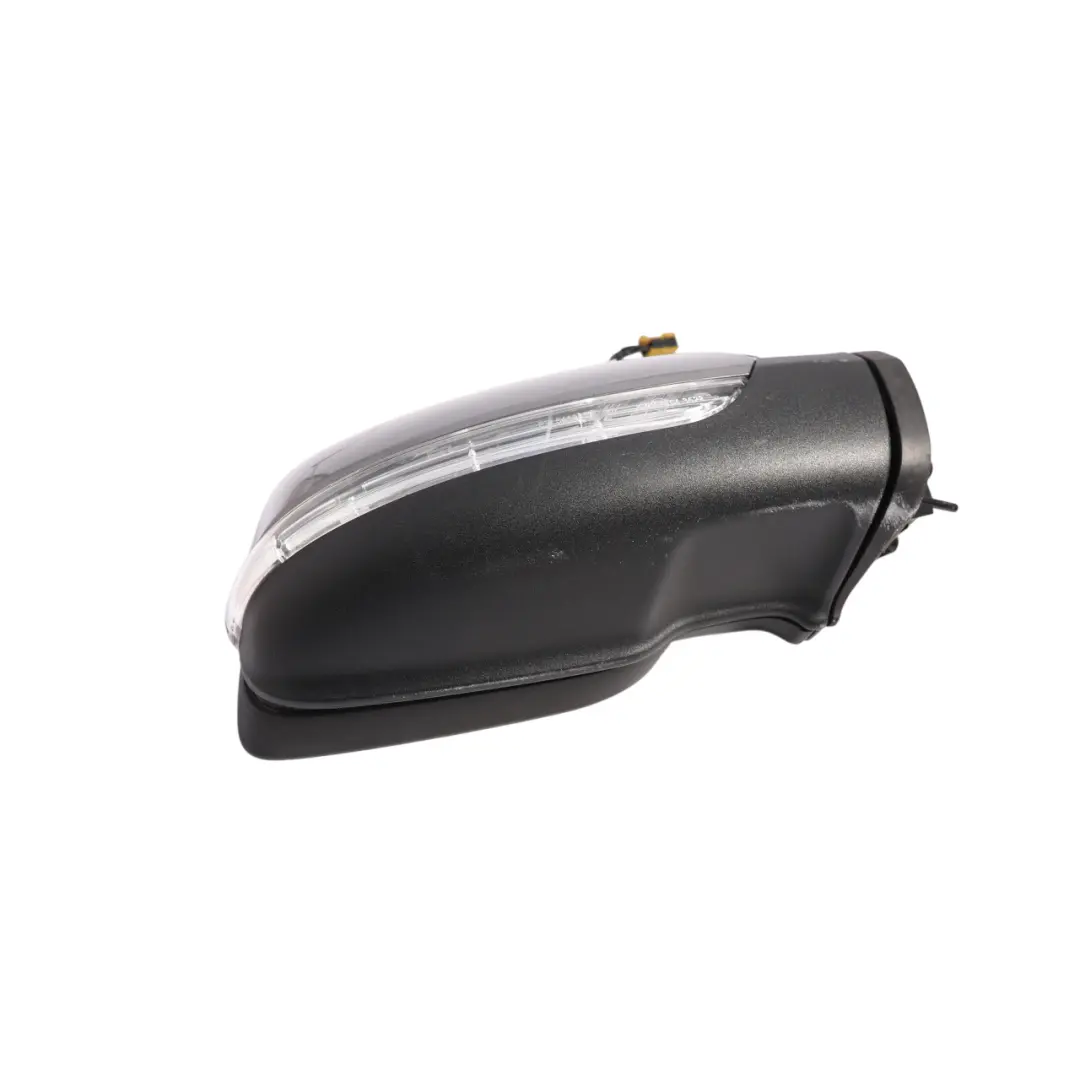

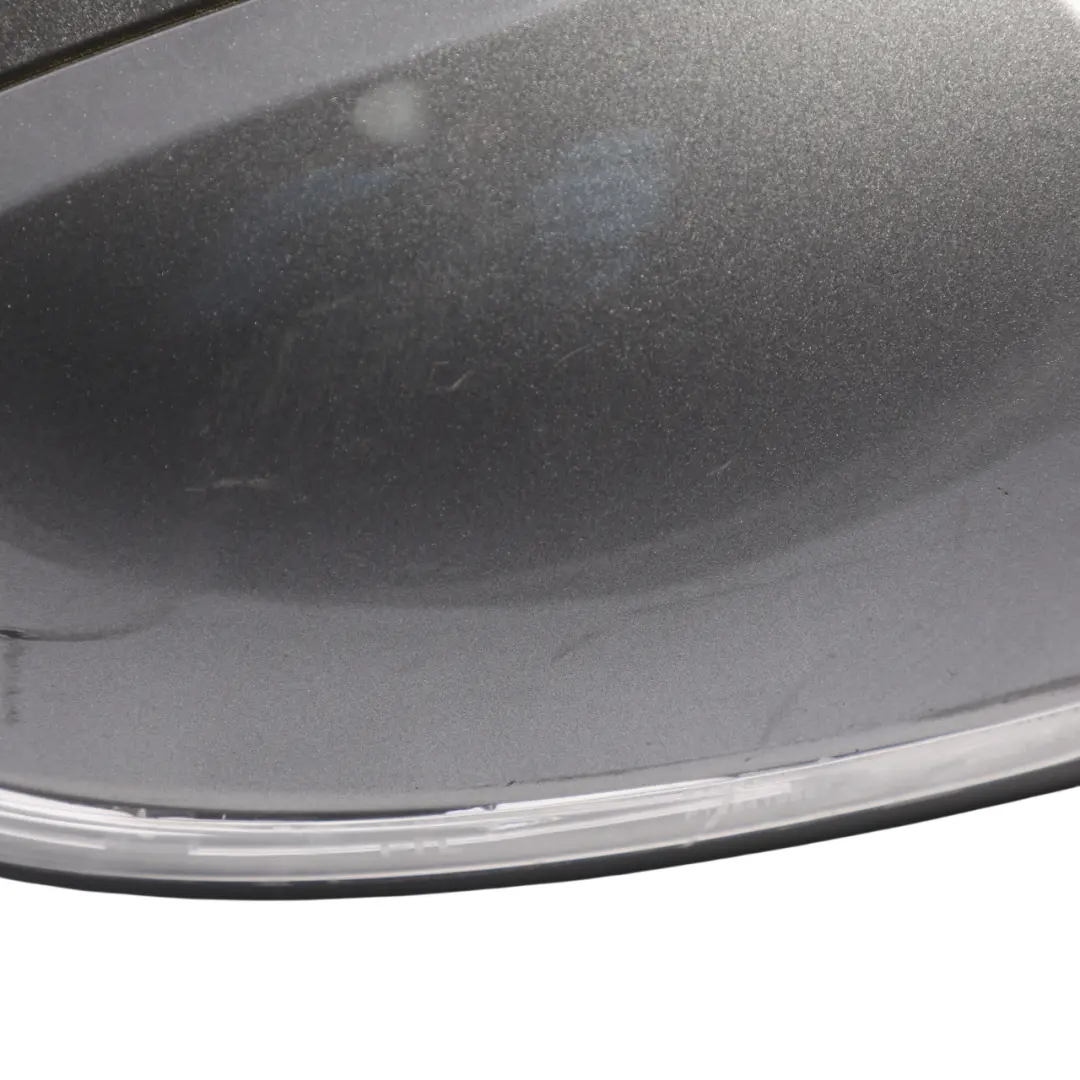

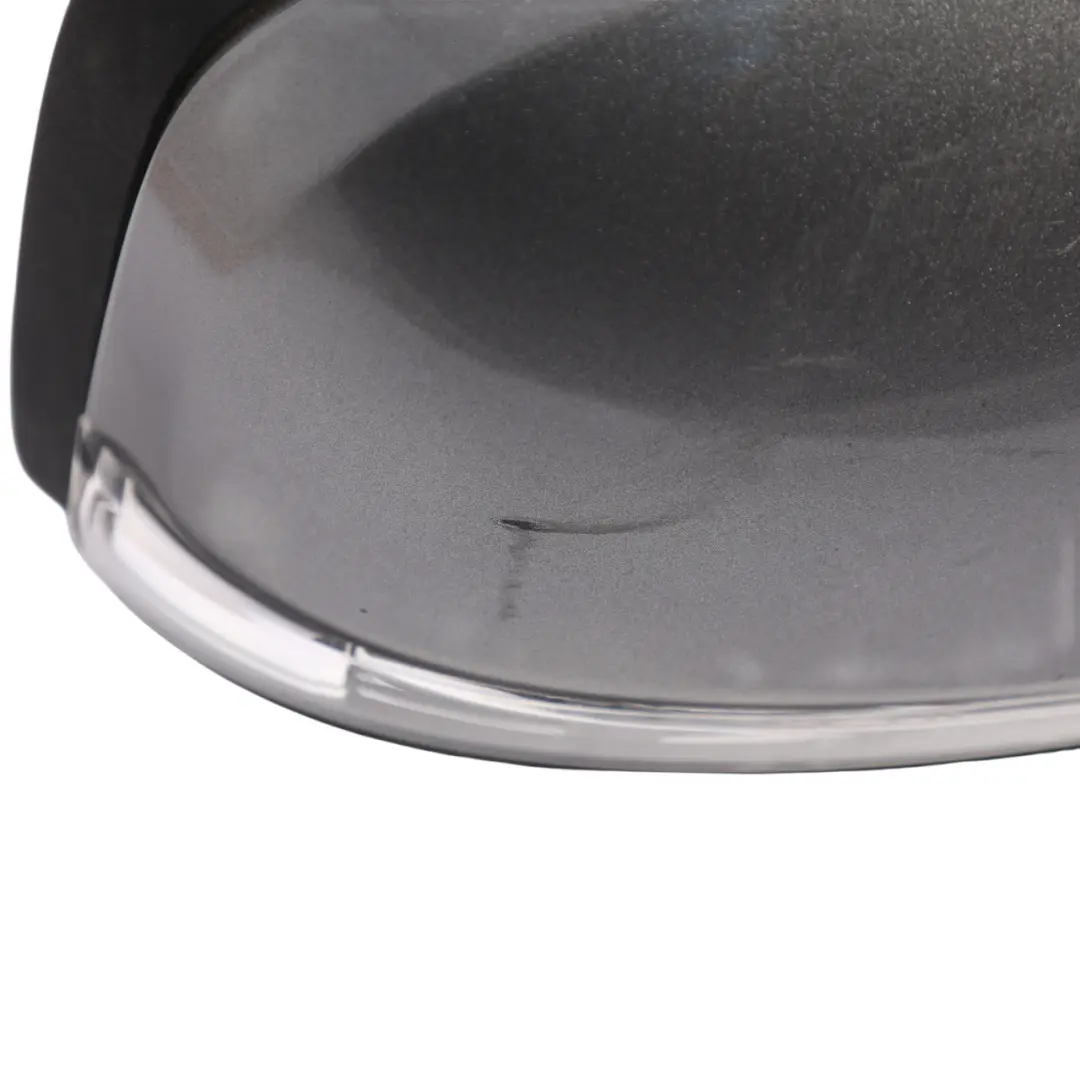

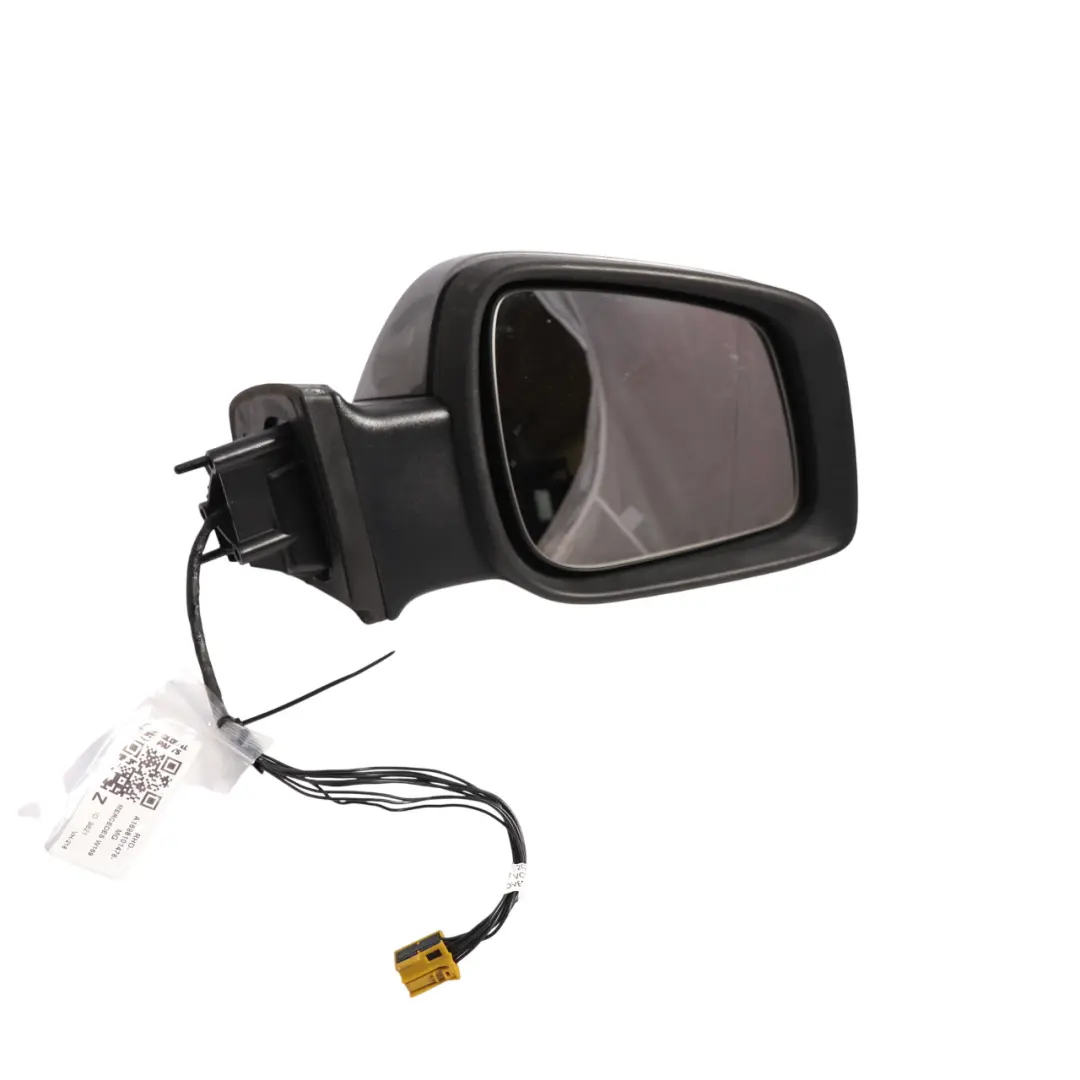

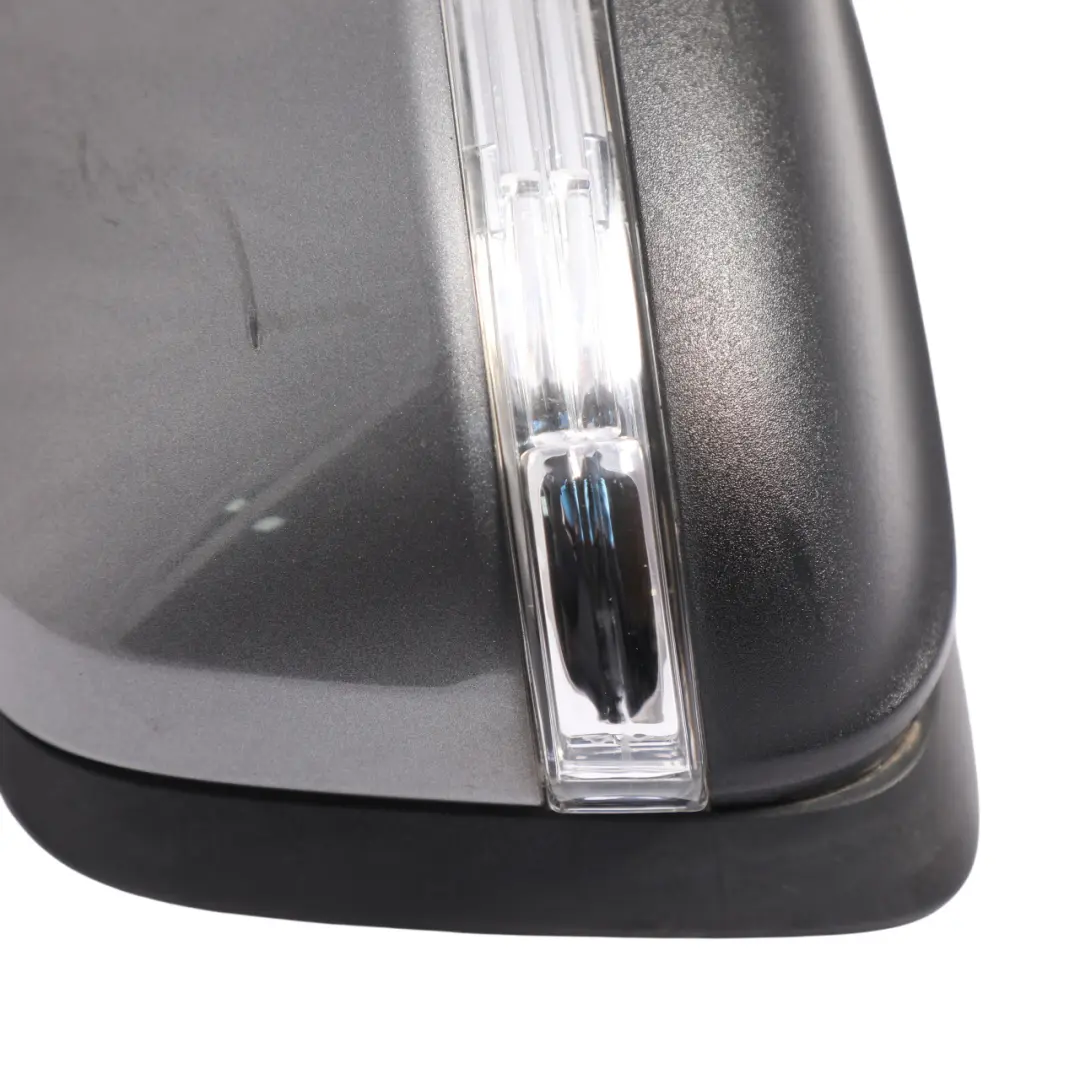

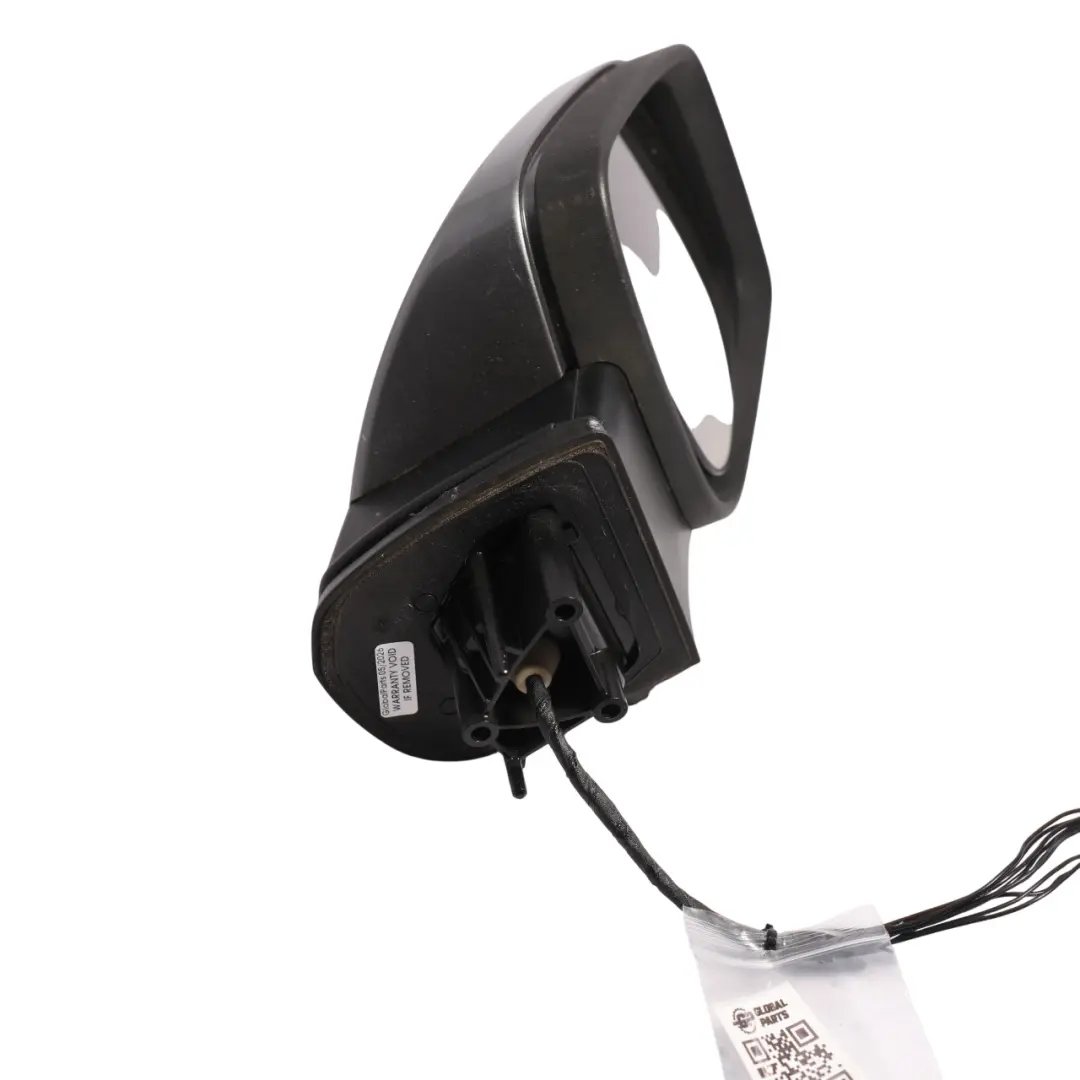

Mercedes W245 W169 Right Mirror Adjustment Frame A1698101476-MG

Mercedes W245 W169 Right Mirror Adjustment Frame is a precision-engineered component designed for the repair and maintenance of the passenger-side mirror system. Thanks to its factory-standard geometry and precise fitment, it ensures stable mounting of the mirror glass and proper interaction with the adjustment mechanism. This is a practical solution for users looking to restore full mirror functionality without the need to replace the entire assembly.

Specifications and technical data

• SKU: RHD-A1698101476-MG
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1698101476-MG
• Substitutable numbers: A1698101476, A 169 810 14 76, EM
• Location on the vehicle: Right
• Category: Mirror Assemblies

Purpose and function in the vehicle

The right mirror adjustment frame is a structural component responsible for holding the mirror glass in the correct position and transmitting movement from the adjustment mechanism. In Mercedes B-Class W245 and A-Class W169 vehicles, a properly functioning passenger-side mirror is crucial for monitoring blind spots and safe lane changing.

This component is mounted on the right side of the vehicle body, within the exterior mirror housing. Its tasks include:

• providing a rigid, repeatable mounting point for the mirror glass,
• maintaining the axis of rotation in accordance with the manufacturer's specifications,
• working with the adjustment drive to enable precise setting of the viewing angle.

Construction and fitment for Mercedes W245 / W169

The frame has been designed specifically for the exterior mirror construction in Mercedes W245 and W169 models, which translates into factory-perfect fitment with the mirror housing and compatibility with the original adjustment mechanism. Properly positioned mounting points allow for installation without interfering with the door structure or the mirror cover.

This solution is particularly useful in situations where mechanical damage to the mirror has occurred (e.g., impact, hitting an obstacle), while the housing and other elements remain in good condition. Replacing the frame alone allows for restoring the system's efficiency while minimizing service costs.

Benefits of using an OEM component

The presented frame comes from the Exterior mirrors category and is a used original component, which in practice means maintaining a construction consistent with the manufacturer's factory standards. Compared to low-budget replacements, this allows for:

• maintaining the correct geometry of the mirror setting relative to the vehicle body,
• reliable operation with the factory adjustment mechanism,
• reducing the risk of installation problems resulting from dimensional differences.

For many users and workshops, choosing a used OEM component is a reasonable compromise between quality and repair cost, especially in the case of older vehicle generations.

Practical installation tips

When replacing the right mirror frame, it is worth paying attention to the condition of other mirror assembly components, such as the glass, housing, or electrical wiring. Proper installation requires following the correct disassembly and assembly sequence to avoid damaging delicate clips and guides. It is recommended to perform a range-of-motion test after installation to ensure that the mirror moves smoothly across its full operating range.

Service expansion and related elements

If you are planning a comprehensive repair or upgrade of the side visibility zone in your Mercedes and need other elements from the same group, such as mirror glass, housings, or complete mirror assemblies, check the available parts in the Mercedes exterior mirrors category.

In a situation where you want to optimize your service budget and better understand when it is worth reaching for used OEM components, an article describing repair saving strategies may be helpful – you can find it here: rising repair costs and the boom in used parts.
