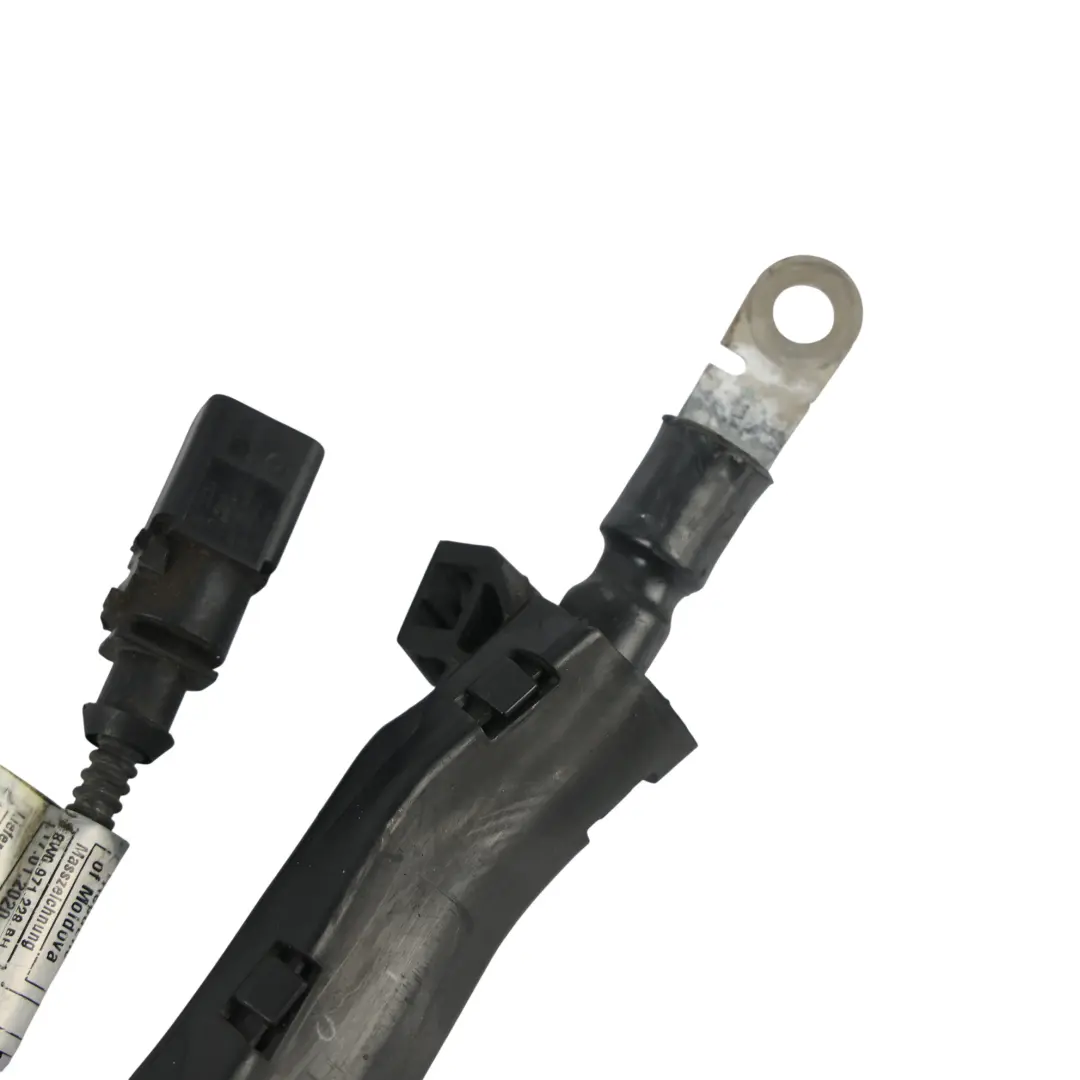

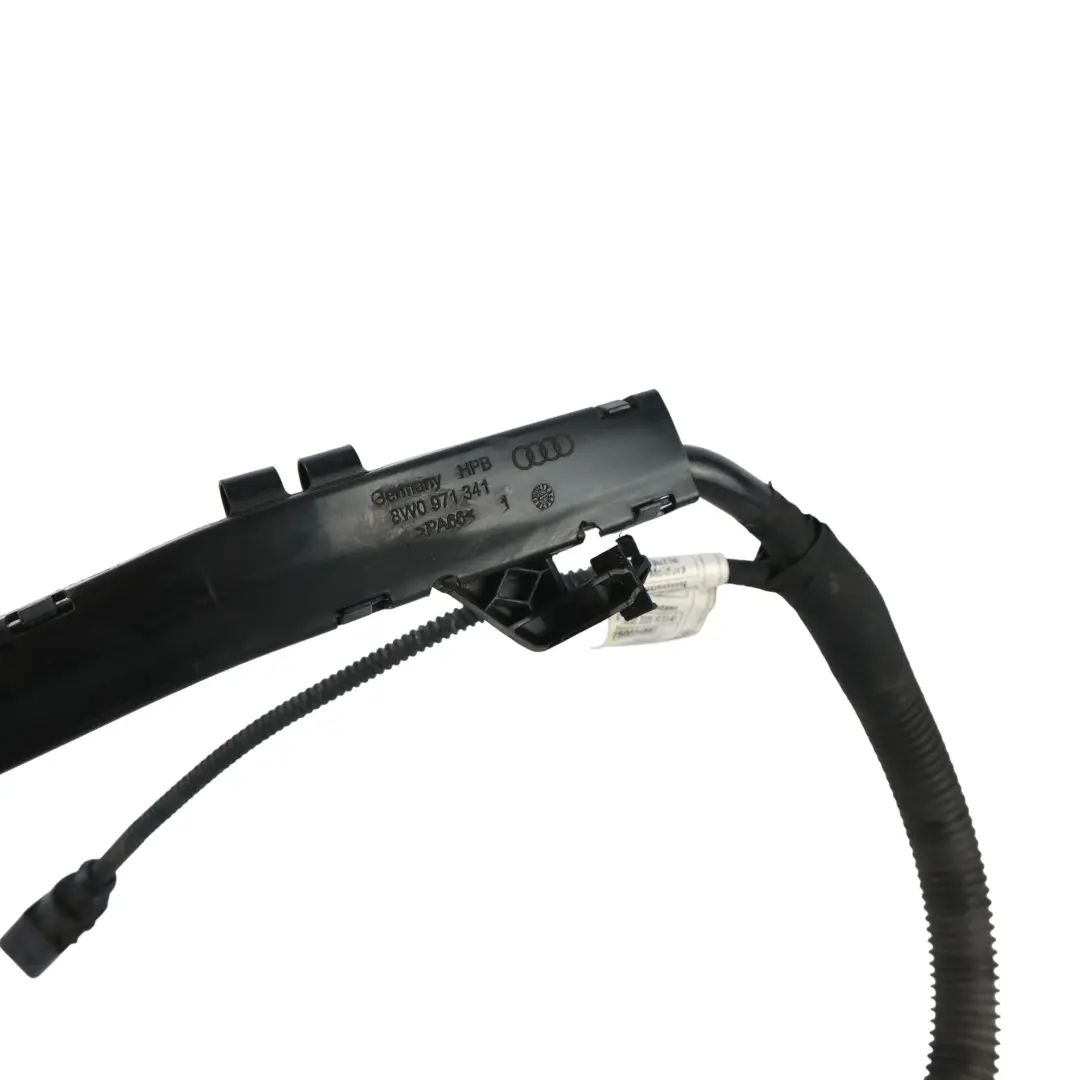

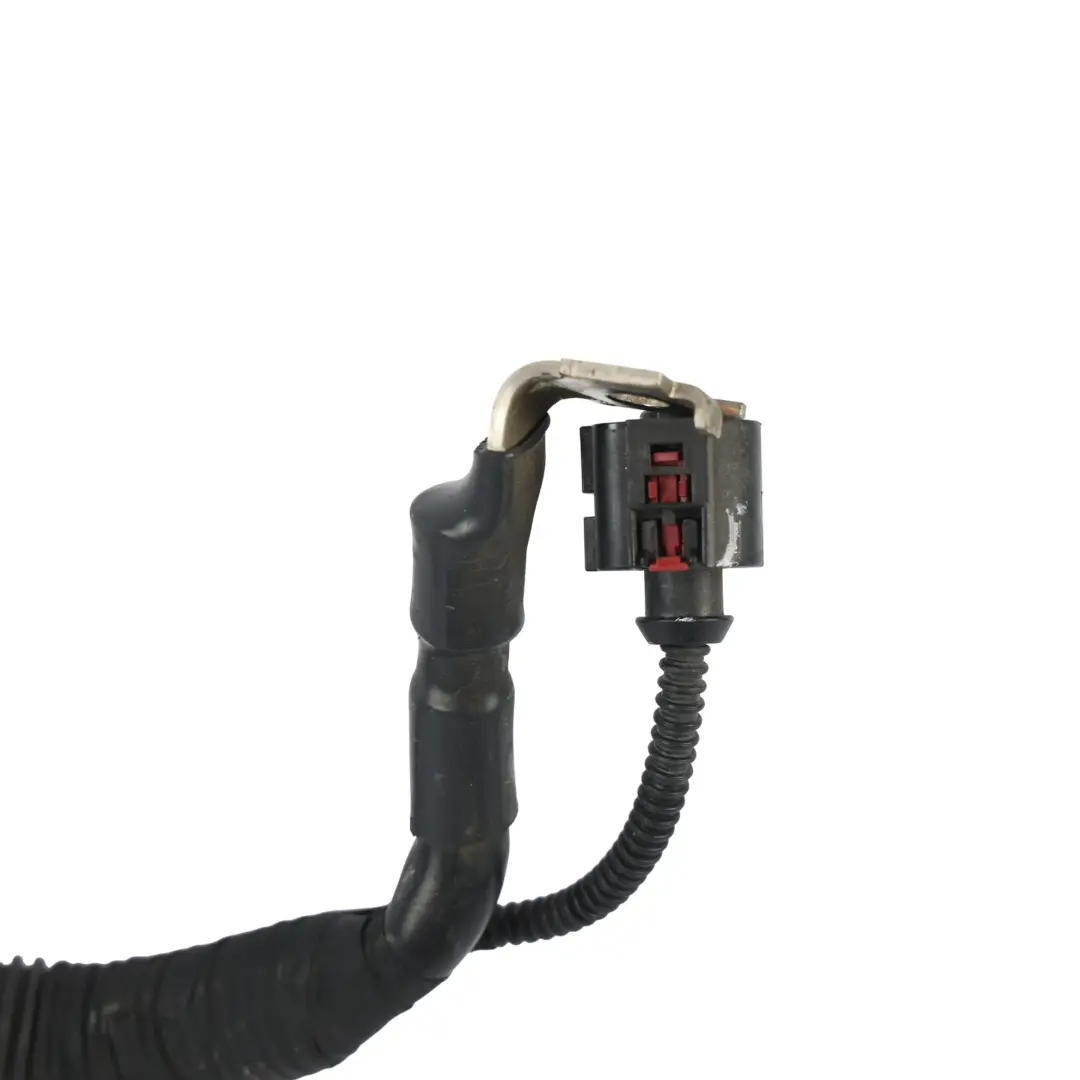

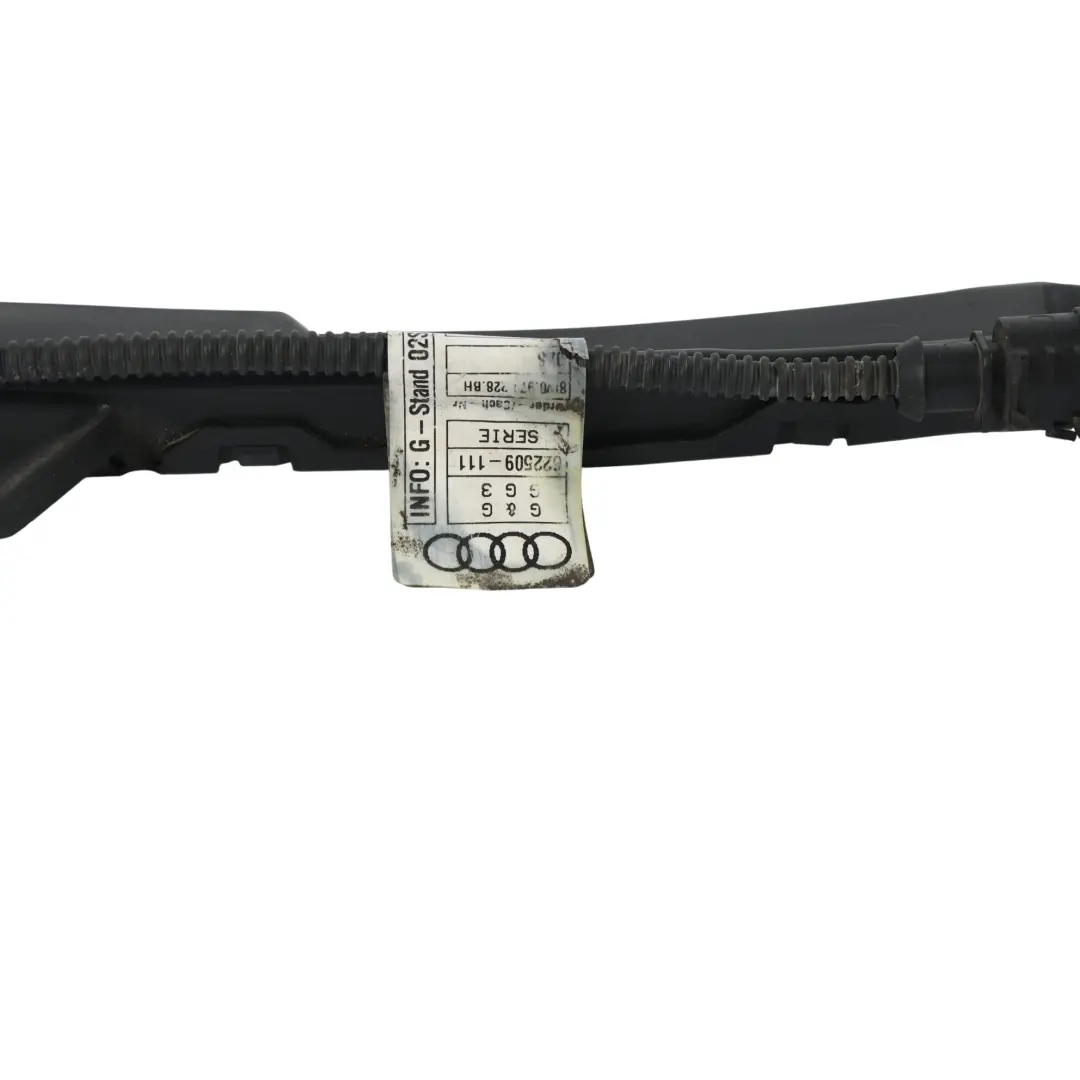

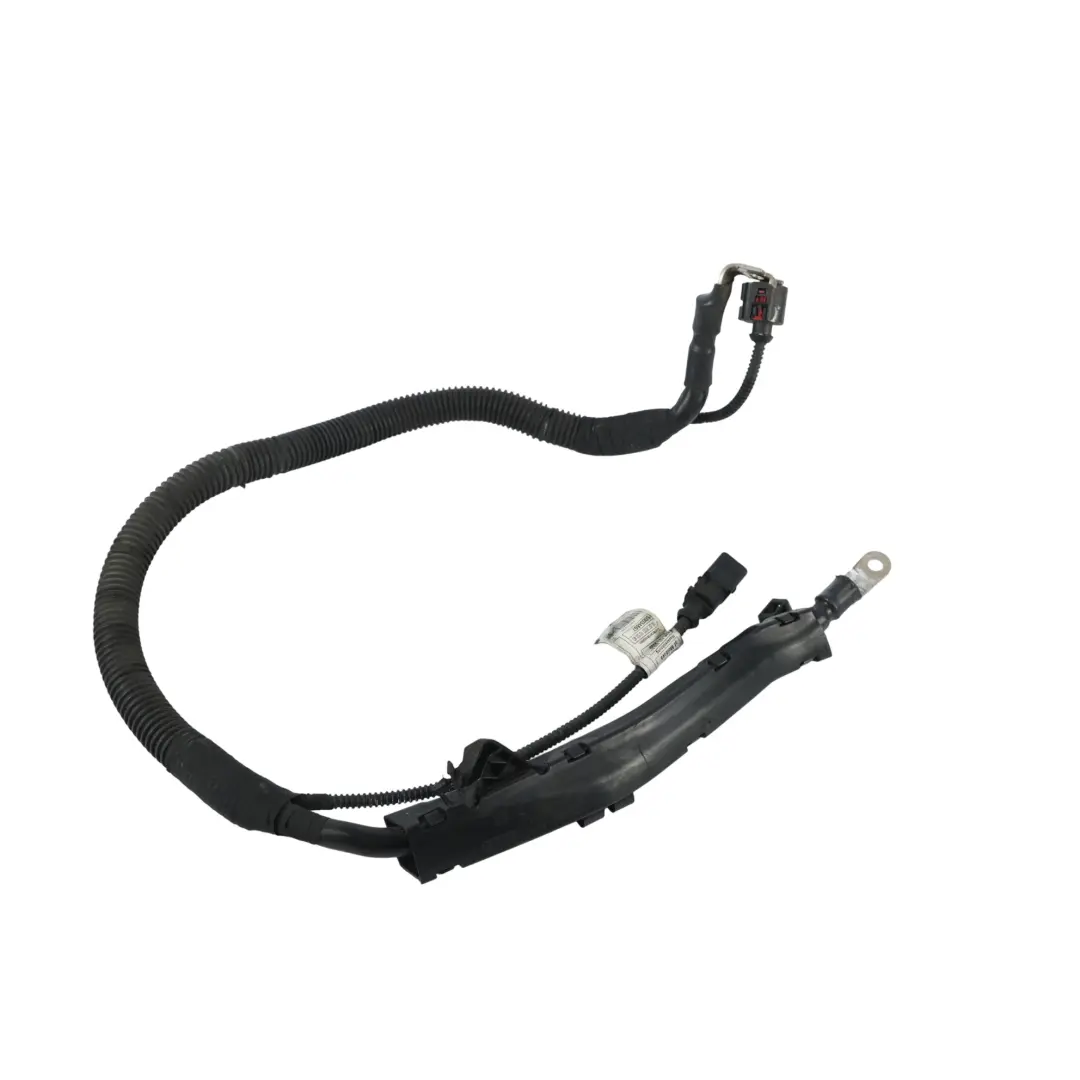

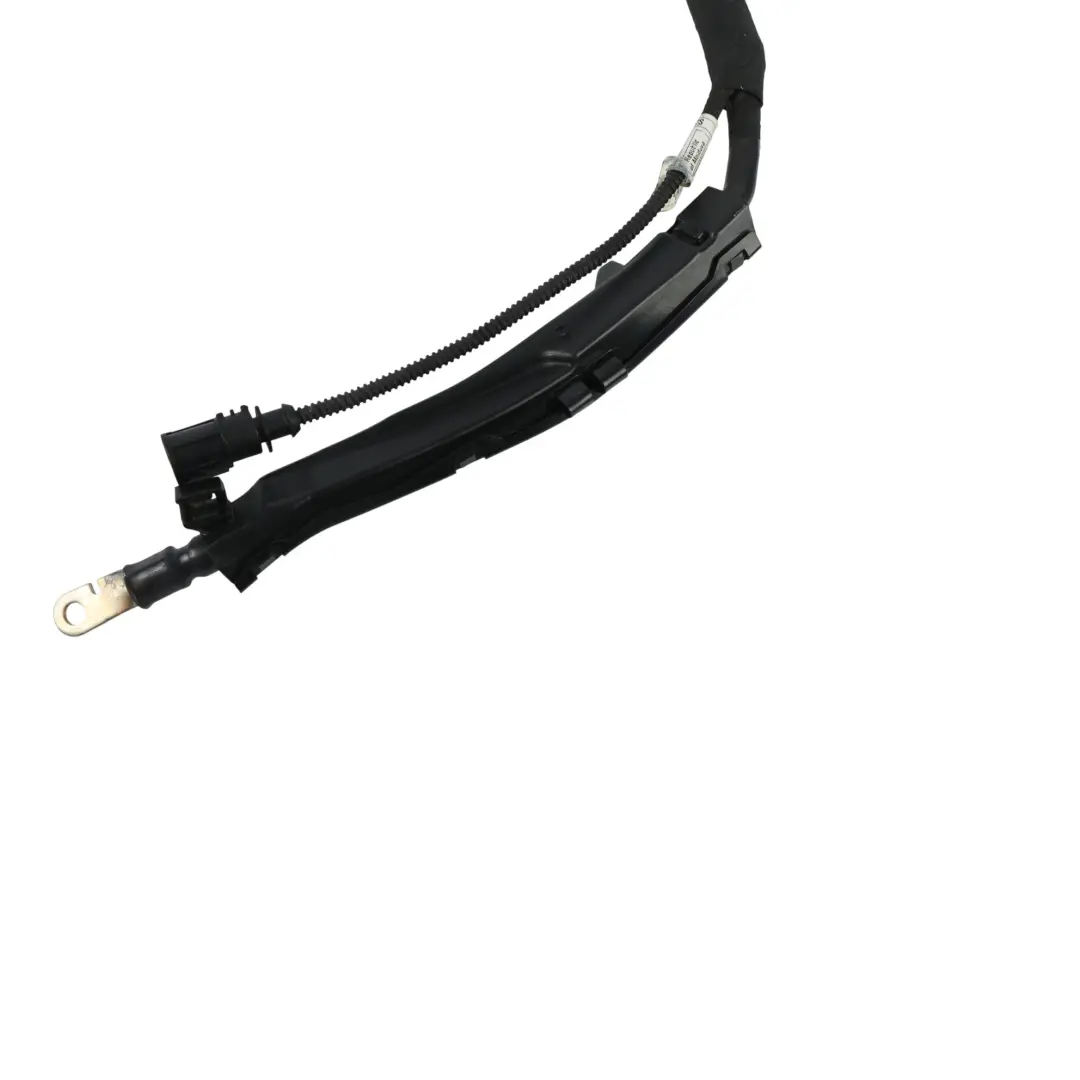

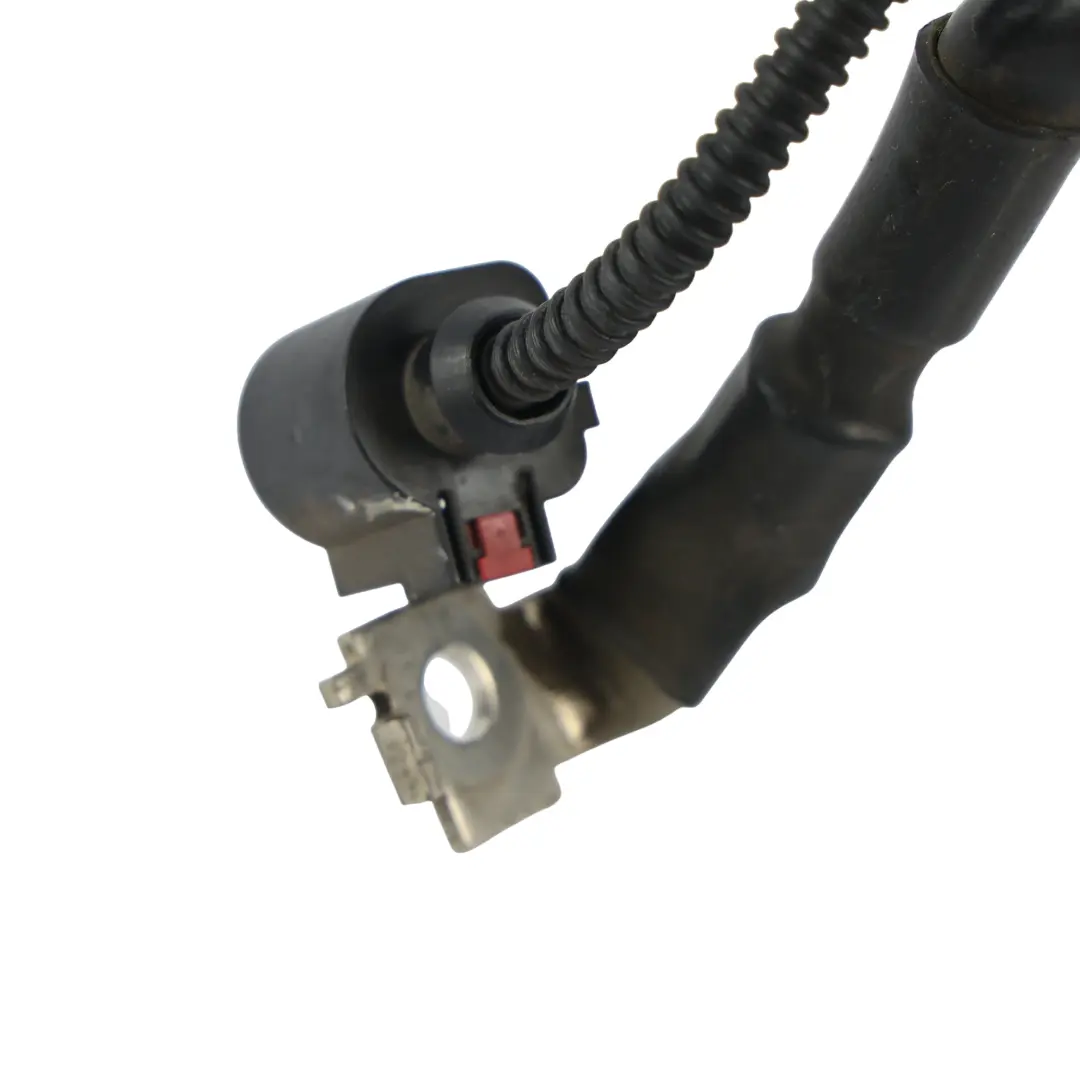

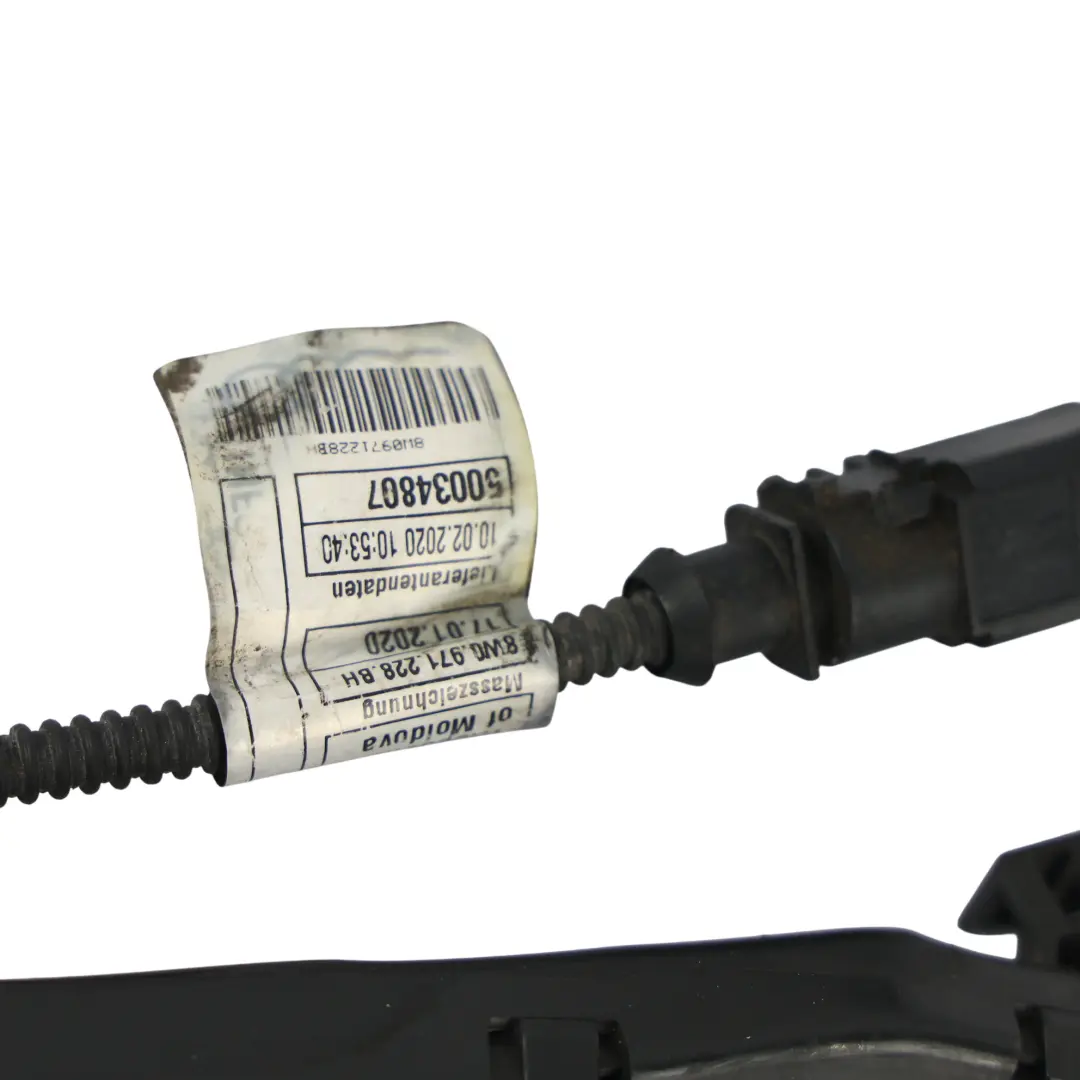

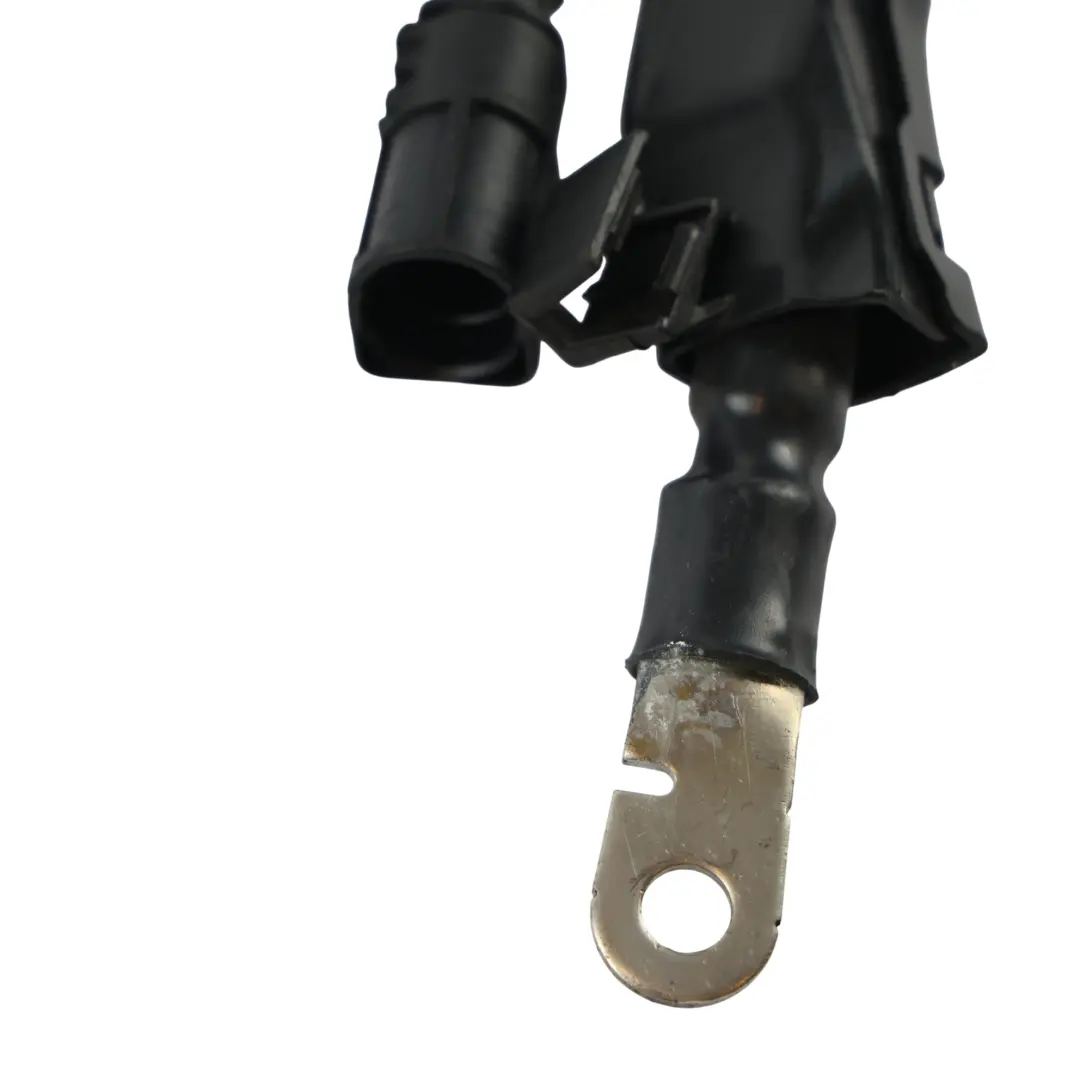

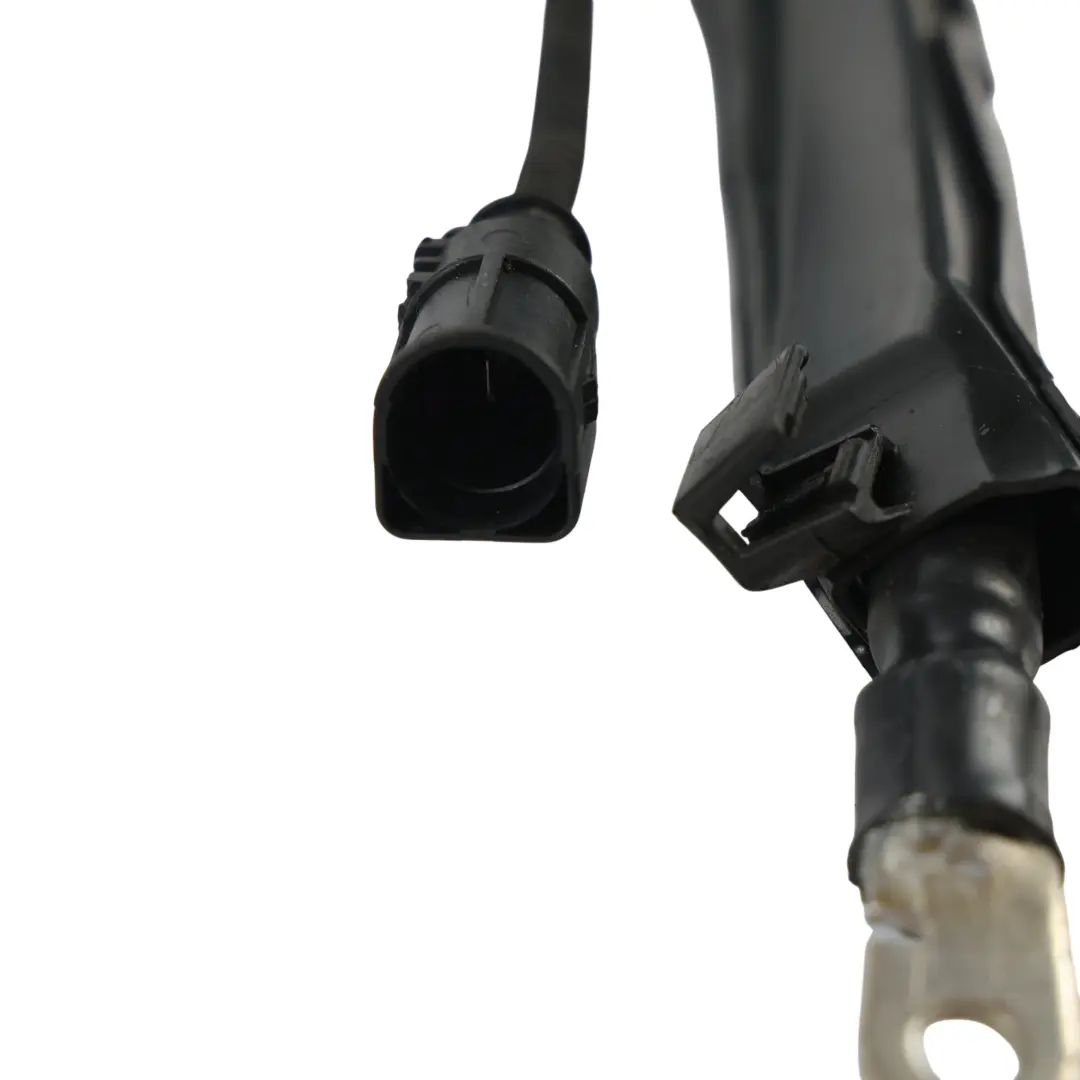

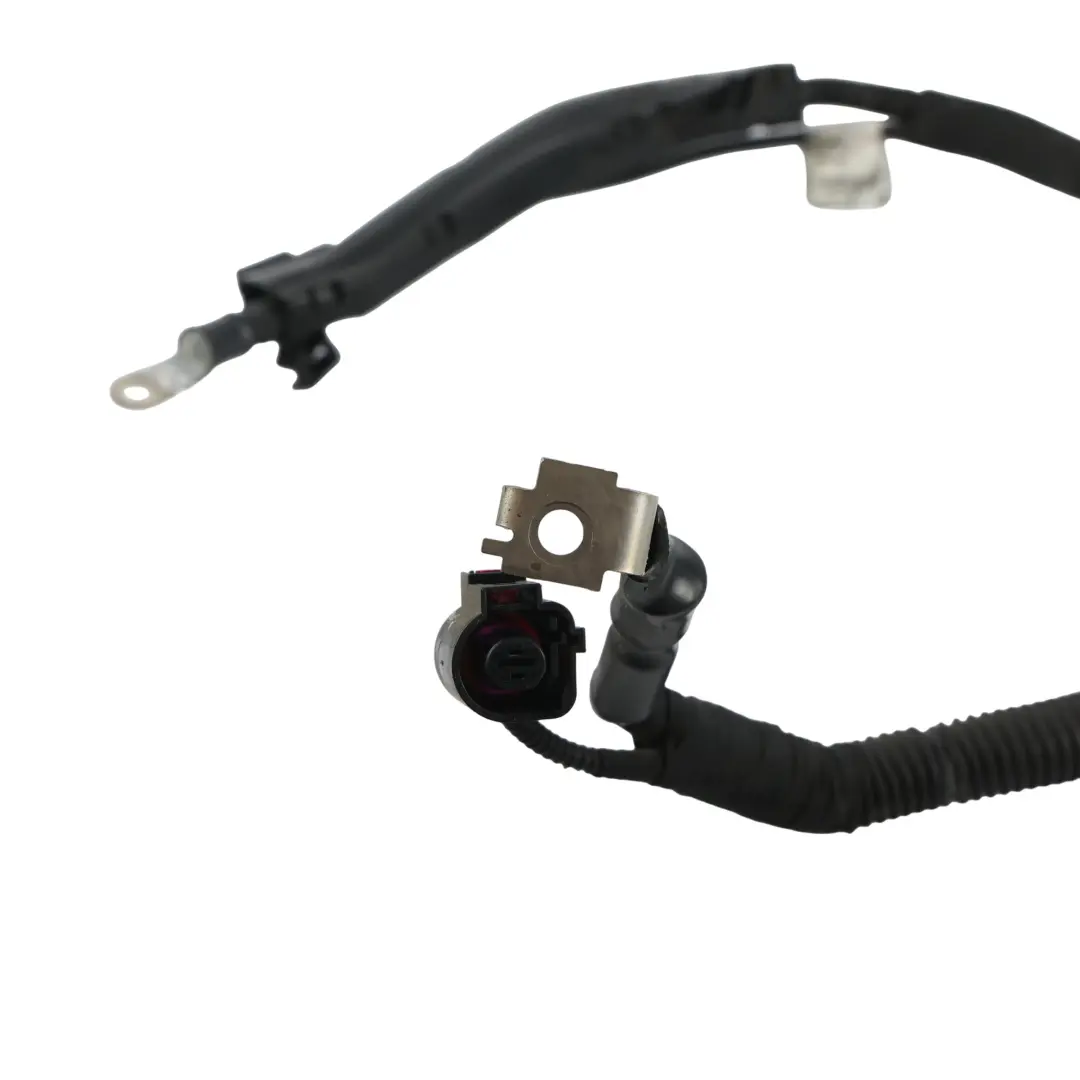

Audi A4 B9 A5 F5 Starter Motor Battery Cable Wiring Harness 8W0971228BH

Audi A4 B9 A5 F5 Starter Motor Battery Cable Wiring Harness is a component from the Cables, wiring harnesses and connectors group, designed for powering and controlling the starting system in Audi vehicles. Carefully routed cables ensure a stable electrical connection between the starter motor and the rest of the installation, which translates into reliable engine starting and proper system operation.

Specifications and technical data

• SKU: 8W0971228BH
• Mark: Audi
• Condition: Used
• OEM Part Number: 8W0971228BH
• Substitutable numbers: 8W0971228BH, 8W0 971 228 BH
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the starter wiring harness

The presented wiring harness is designed to operate in the starter motor area, where high starting currents and increased thermal loads occur. Properly selected cable cross-sections and solid connectors minimize voltage drops, which promotes efficient engine starting and the stability of the entire electrical system.

Thanks to the factory cable routing and matched terminals, the harness allows for maintaining the original electrical installation architecture in the Audi A4 B9 and Audi A5 F5, without the need for modifications or the use of adapters. This solution is particularly beneficial for post-collision repairs, replacing damaged installations, or restoring the vehicle to the manufacturer's specifications.

Construction, connectors, and mounting compatibility

The starter wiring harness uses factory connectors characteristic of the Audi brand, which facilitates installation and reduces the risk of connection errors. The cable terminals used are adapted for operation in the engine compartment environment, where vibrations, temperature changes, and contact with moisture and contaminants occur.

The layout of the cables and the lengths of individual sections are adapted to the geometry of the engine compartment in the A4 B9 and A5 F5 models, which allows for routing the installation through the original mounting points. Such a solution helps maintain clarity in the engine compartment, facilitates subsequent diagnostics, and reduces the risk of insulation abrasion or unwanted contact with moving parts.

Benefits of using an original Audi wiring harness

Using an original starter wiring harness instead of universal or aftermarket components brings a number of practical benefits:

• preservation of the factory electrical installation topology,
• secure fit of connectors to starter system components,
• reduced risk of cable overheating due to properly selected cross-sections,
• easier diagnostics of potential electrical faults in the future.

For users who expect predictable starter system behavior and want to avoid problems with unstable voltage, choosing an original harness from the Cables, wiring harnesses and connectors group is a technically sound solution.

Condition, verification, and service application

The item comes from disassembly and is offered as a used part, which allows for economical repair while maintaining a component consistent with Audi's factory specifications. This type of harness will work well both for standard replacement of a damaged starter cable and for larger service work in the engine compartment area, where it is necessary to recreate the original installation path.

In workshop practice, the use of a complete, original wiring harness shortens assembly time, limits the need for soldering or crimping new terminals, and reduces the risk of creating high-resistance points. This translates into more stable starter system operation and less load on other electrical system components.

System expansion and selection of related components

If you are planning a comprehensive repair or upgrade of the engine area in your Audi and need other elements from the same group, such as additional harnesses, power cables, or installation connectors, check the available parts in the Audi cables, wiring harnesses and connectors category.

For users interested in deepening their knowledge about the selection of used components, their impact on engine performance characteristics, and integration with other system elements, an article describing the practical aspects of choosing and installing turbochargers in sports designs may be helpful – Go-Kart Feeling XXL: used N18 turbocharger versus B48 – what to choose for a Mini Cooper S?. Although it concerns a different brand, it well illustrates the approach to selecting used OEM parts and their proper installation.
